OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components

Product Description
High-Speed Fiber Laser Welding Machine for Automobile Components dapenglaser

Product Description:
The high-speed fiber laser welding machine for automobile components offered
by Dapenglaser is a cutting-edge solution for precise and efficient welding
in the automotive industry. This machine utilizes advanced fiber laser
technology to deliver exceptional performance and reliability. It is
specifically designed for welding various automobile components with high
speed and accuracy.

Features:
High Energy Efficiency: The fiber laser technology employed in this machine
ensures high photoelectric conversion efficiency, resulting in significant
energy savings and reduced operating costs.
Precise Welding: With its high energy density and low heat input, this
machine produces minimal thermal deformation, narrow and deep melting zones,
and excellent joint performance.
Enhanced Cooling Rate: The machine's high cooling rate enables the welding
of fine weld structures, ensuring superior weld quality and strength.
Electrode-Free Welding: Unlike traditional contact welding methods, laser
welding eliminates the need for electrodes, reducing maintenance costs and
increasing work efficiency.
Versatile and Compact: This machine offers flexible processing capabilities,
compact size, and can be easily integrated with pipelines or robots for
automated welding processes.



Steel Tool Brick Trowel Custom Fixture Automatic CNC Fiber Laser Welding
Machine

Product advantages:

1. The energy density is high, the heat input is low, the amount of thermal
deformation is small, and the melting zone and the heat-affected zone are
narrow and deep.

2. High cooling rate, which can weld fine weld structure and good joint
performance.

3. Compared with contact welding, laser welding eliminates the need for
electrodes, reducing daily maintenance costs and greatly increasing work
efficiency.

4. The weld seam is thin, the penetration depth is large, the taper is
small, the precision is high, the appearance is smooth, flat and beautiful.

5. No consumables, small size, flexible processing, low operating and
maintenance costs.

6. The laser is transmitted through fiber optics and can be used in
conjunction with a pipeline or robot.



Application areas:

It is widely used in the automotive, machinery manufacturing, medical
equipment, shipbuilding, chemical industry, aerospace, aviation, power
battery and daily necessities industries.



Technology parameters

Laser power 1500W,2000W
Center wavelength 1070nm
Output power stability <3%
Laser frequency 0.5Hz-100KHz
Adjustable power range 10-100%
Beam quality 1.1
Optimal operating environment Temperature 0-40 ° C, humidity 20% -80%
Electricity demand AC220V
Output fiber length 10m
Welding speed 0-120mm/s
Machine travel XYZ, 50x50x50cm
Cooling method Water Cooling
Dimensions 100cm*100cm*172cm
Weight 300kg


Machine configuration:

Name Specs Qty Place of origin
Cabinet Dapeng fiber welding cabinet 1 Shenzhen
Laser source MAX/Raycus 1 China
Welding head Wobble welding head 1 China
Chiller 2.0P 1 Shenzhen
Welding CNC system C6 1 Wuhan
CCD camera 20 times magnification 1 Shenzhen
Servo motor 400W 2 China
Servo motor 400W with brake 1 China

OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components 0
Laser Power
1000W-6000W
Laser Source
Raycus/Max/IPG/nLIGHT
Laser Head
Raytool/WSX/OSPRI
Fiber Wire Length
5/10 Meters
Laser Wavelength
1070nm
Axis
4/5 Axis
Fixture
Support Customization
Operate Mode
Continuation/Modulate
Water Chiller
Hanli
Spot Adjusting Range
0.1-3mm
Repeating Precision
±0.01mm
Cabinet Size
1230*1010*1750mm
Machine Weight
About 350KG
Voltage
380V/3-Phase/50Hz/40A/60A
O , EM 2000W Fiber Laser Welding Machine High Speed For Automobile Components 1
OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components 2
OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components 3
OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components 4



We are manufacturer of fiber laser cutting machine with 12 years of
production experience.We offer complete machine solution,also provide laser
source,CNC controller ,laserhead, water chiller,servo,custom made machine
table,training and service,etc. one-stop solution!


Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China
market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in
stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell
50 units/month in China.

We are looking for distributor. Price is more competitive.

We have 250MB videos and manual reference, if you want, we can send you for
free, please leave message.

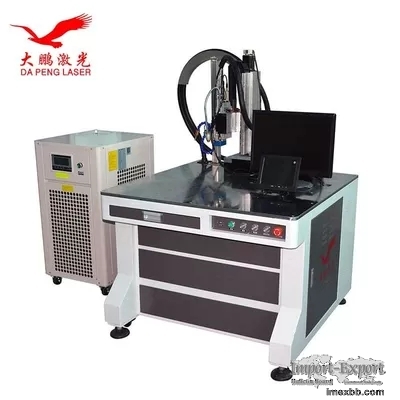

OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components
