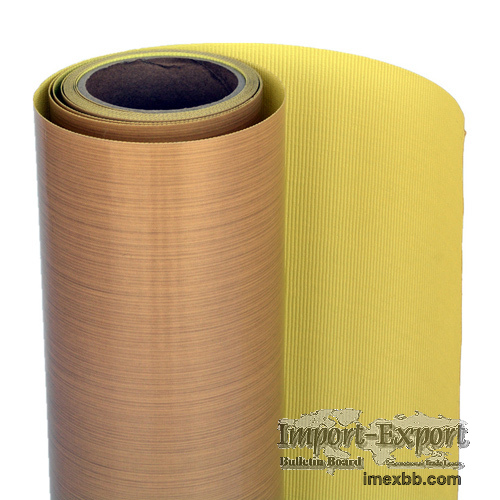

0.18mm Adhesive Backed Teflon Sheet

0.18mm Adhesive Backed Teflon Sheet is a kind of self adhesive teflon sheet,
glossy and smooth surface for excellent mold releaseDetails of Adhesive Backed
Teflon SheetSelf Adhesive Teflon Sheet combines the heat resistance and quick
release features of PTFE with the high strength and dimension stability
properties of woven fiberglass fabric.This Teflon sheet with adhesive backing
is in thickness of 0.20mm in total, normally used as release sheet for the hot
plate of laminating machine and as covering sheet for the rollers of dying
machine and packaging machine. The tape is normally comes out with yellow
release paper on the back.Advantages of Adhesive Backed Teflon SheetExtreme of
heat and cols resistance from -73-260℃(-100-500℉)Excellent quick release from
sticky materialsNo residual adhesive on machine, easy to cleanHigh tensile
strength, low co-efficient of frictionUV, Infra-Red and microwave resistanceLow
Thermal Expansion: < 5%Excellent chemical inertnessFDA approved, can be used in
food industrySpecification of Adhesive Backed Teflon Sheet
Item Code Material Fabric Thickness Total Thickness Normal
Width(mm) Normal Length Temperature resist
7018AJ PTFE, Fiberglass 0.18mm 0.23mm 1000, 1250 30m, 33m, 50m,
100m -73-260℃
Adhesive Backed Teflon Sheet Structure
Data sheet of 7015AJ
Product Adhesive Coating Material
PTFE FIBERGLASS
SELF ADHESIVE SILICONE PTFE
FEATURES METRIC IMPERIAL
Standard Width 1000mm, 1250mm 39inches, 49inches
Fabric Thickness 0.18mm 0.0071inches
Overall Thickness 0.23mm 0.0091inches
Fabric Weight 350 g/m2 10.32 oz/sq yd
Adhesion 5.6 N/cm 51 oz/inch
Tensile Strength 320 N/cm           Warp 183
lbs/inches       Warp
302 N/cm            Weft 172 lbs/inches       Weft
Temperature Resistance -73-260℃ -100-500℉
Applications of Adhesive Backed Teflon SheetAs UPVC release sheet for welding
process, this self adhesive tape is easy to apply on the hot platen of welding
machine, melted PVC will not stuck on it because it offers 100% nonstick
surface. Work efficiency will be improved and machine will be protected by
using this tape. Cover pressure rollers of packaging machines Heat sealing of
plastic filmsCover sheet of sizing cylinders for dyeing processStick on the
roll coater for tacky products Cover the friction area of chute

Mutiflon is a leading adhesive teflon sheet manufacturer. another products such
as ptfe coated fiberglass fabric and teflon coated fabric are available for
your need. Please feel free to contact us.

Minimum Order: 10 square metres
