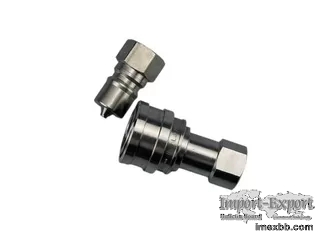

0.25'' Stainless Steel 316 Close Hydraulic Quick Coupler

1/4'' CB-1 Series stainless steel 316 close type hydraulic quick coupling



CB-SPL-1FG/ CB-SPM-1FG are used in construction equipment, hydraulic
applications. These Double Shut-Off couplings can be found anywhere that fluid
transfer lines need to be connected and disconnected for operation or
maintenance of equipment, and a loss of fluid is undesirable.



Standard Materials

Brass, zinc-plated steel, stainless steel
Seals: NBR, Viton, EPDM
Features

Poppet valves available to prevent uncoupled leakage . Poppet valves open
automatically when coupled within rated working pressure to keep the flow
expeditely.
Critical parts are hardened for durability.
Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and
HANSEN HK Series.0.25'' Stainless Steel 316 Close Hydraulic Quick Coupler 0
Body Size PARTNO. Thread A B Across Flats
1/8" CB-S1S-1FG 1/8-27 1.91 0.98 0.56
1/8" CB-S1S-1FN 1/8-27 1.91 0.98 0.56
1/4" CB-S2S-1FG 1/4-19 2.26 1.17 0.75
1/4" CB-S2S-1FN 1/4-18 2.26 1.17 0.75
3/8" CB-S3S-1FG 3/8-19 2.56 1.42 0.88
3/8" CB-S3S-1FN 3/8-18 2.56 1.42 0.88
1/2" CB-S4S-1FG 1/2-14 2.96 1.86 1.13
1/2" CB-S4S-1FN 1/2-14 2.96 1.86 1.13
3/4" CB-S6S-1FG 3/4-14 3.48 2.22 1.31
3/4" CB-S6S-1FN 3/4-14 3.48 2.22 1.31
1" CB-S8S-1FG 1-11 4.13 2.61 1.75
1" CB-S8S-1FN 1-11 4.13 2.61 1.750.25'' Stainless Steel 316
Close Hydraulic Quick Coupler 1
Body Size PARTNO. Thread C D E HEX
1/8" CB-P1S-1FG 1/8-27 1.26 0.65 0.44 0.56
1/8" CB-P1S-1FG 1/8-27 1.26


0.65

0.44 0.56
1/4" CB-P2S-1FG 1/4-19 1.52 0.87 0.56 0.75
1/4" CB-P2S-1FN 1/4-18 1.52 0.87 0.56 0.75
3/8" CB-P3S-1FG 3/8-19 1.76 1.01 0.61 0.88
3/8" CB-P3S-1FN 3/8-18 1.76 1.01 0.61 0.88
1/2" CB-P4S-1FG 1/2-14 2.03 1.30 0.76 1.13
1/2" CB-P4S-1FN 1/2-14 2.03 1.30 0.76 1.13
3/4" CB-P6S-1FG 3/4-14 2.36 1.52 0.71 1.31
3/4" CB-P6S-1FN 3/4-14 2.36 1.52 0.71 1.31
1" CB-P8S-1FG 1-11 2.85 1.88 0.97 1.63
1" CB-P8S-1FN 1-11 2.85 1.88 0.97 1.63

Click to Enlarge
