0.75W Industrial Fast Door 220V / 380V Automatic Fast Doors Spring Free

Fast Roll Doors(The Power Supply Is 220/380V, The Power Is 0.75W, 1500S/Rev,
And It Bears A Large Load S4 Type)



What is a fast rolling door?
A fast rolling door is a common type of rolling door that opens and closes 3
times faster than a regular garage door. Rapid roll-up doors feature a
spring-free design and are made from high-strength galvanized steel, making
them ideal for high-traffic building openings

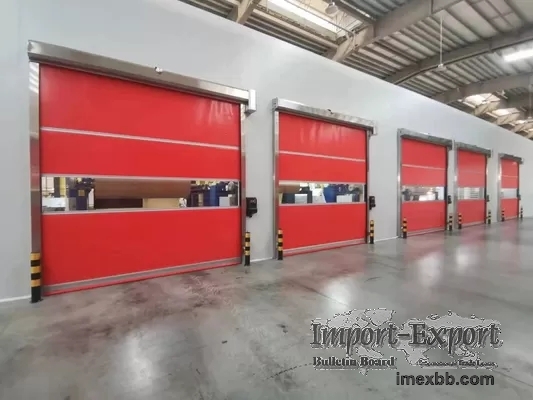

Fast Roll Doors

Pvc fast rolling doors, the door body is made of PVC fabric with self-
extinguishing grade, galvanized steel frame door frame and high speed motor.
Its opening speed is faster than that of general industrial doors,with a
maximum opening speed of 2 m/s.Due to the sealed KPPM in the door gauge and
the tightness of high-grade PVC raw materials,the sealing performance and
thermal insulation performance of fast doors are better than other
industrial doors.Significantly improved



Product Details



Part Name Configuration
Curtain material
-The material of the perspective window is PVC film; it is not easy to age,
does not deform, has good frost resistance, and does not dry in winter

-The main part of the curtain is 0.8-1.2mm thick industrial polyester fiber
base fabric, high strength environmental protection polyester fiber, double-
sided polyvinyl chloride coating, which has special fire resistance. Double-
sided self-cleaning coating, multiple color options (yellow, red, blue,
silver gray, etc.

-The curtain fabric is a cassette type segmented type, which is convenient
for replacement

-Tear resistance: 900N/800N (warp/weft), tensile strength: 5700/5100N/5CM,
wind resistance:15-20m/s

Door box -The door box is Bao-steel cold-rolled sheet, galvanized
sheet weathering spray plastic processing
Door opener
-Special high-speed door frequency conversion motor (can be customized for
rare earth permanent magnet special brake servo motor)

-The power supply is 220/380V, the power is 0.75W, 1500S/rev, and it bears a
large load S4 type

-Opening speed: 0.8-1.2m/s (customizable opening speed up to 2m/s)

-Closing speed:0.6-08m/s

-High frequency opening: 1000-1500 times/day

Control System
-High-speed door dedicated frequency conversion system control

-LED or Chinese man-machine interface

-Frequency conversion and intelligent logic circuit

Security protection system -Infrared security system, effectively
guarantee the safety of traffic
Track Wall thickness 2.0mm galvanized rail, 3 million polymer materials
