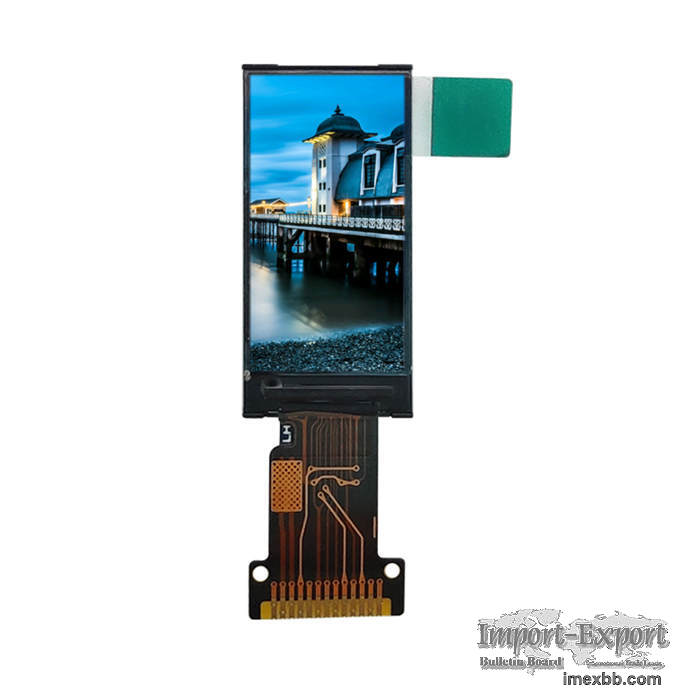

0.96 INCH TFT DISPLAY

0.96 INCH TFT DISPLAY
Our DG-80160-096 TFT LCD is a 0.96 inch TFT display with 80*160 resolution. It
is built into IPS/Transmission mode, SP14 interface and driven by ST7735S
driver IC. It can reach wide viewing angle of left: 80, right:80, up:80,
down:80 degree. 1000:1 contrast ratio makes it display clear white text in both
bright and dark room. This TFT display is designed to be operated with -20 ~
+70 °C temperature and stored within -30 ~ +80 °C. It is widely used in
wearable device, personal health appliances, and smartwatches. All of our
products are open to be customized according to client’s demand. Welcome to
send us any inquiry regarding to our products.
TFT Display Module Specification:
Part # DG-80160-096
TFT Type 0.96" TFT
Dot arrangement 80(RGB)×160 dots
Module Size 14.04(W)×27.95(H)×1.35(T) mm
Active area 10.8(W)×21.7(H) mm
Display mode IPS / Transmission
Driver IC ST7735S
Eyes Viewing Direction 80/80/80/80
Transmission Contrast 1000:1
Color filter array RGB vertical stripe
Interface SPI4
Backlight Color White
Operating temperature -20 ~ +70 °C
Storage temperature -30 ~ +80 °C
