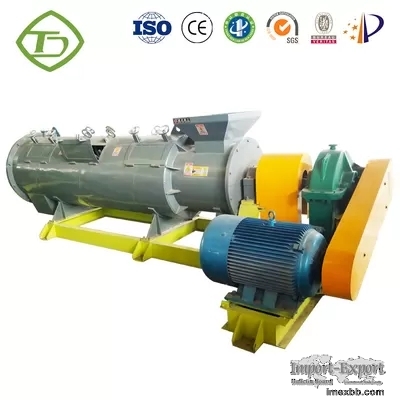

1-1.5T/H Fertilizer Pelletizer Organic Fertilizer Granulator Machine

Higher Ball Formation Rate Fertilizer Pelletizer Organic Fertilizer Granulating
Machine

The new type organic fertilizer granulator is a kind of granulating machine
which can make the material into a specific ball shape. It adopts the new
process design principle of wet continuous push rod granulation. When the raw
materials enter the granulator, the raw materials are first made into semi-
finished particles by the principle of stirring teeth, and then they are put
into the rotary drum granulation part for secondary granulation. The
pelletizing rate can reach 99% and the finished products are all round balls.
Compared with other granulators, this new granulator not only improves the
pelletizing rate, but also greatly improves the output of finished products. It
is a good choice for new and old customers.

Working principle :

Use the high speed of rotation of mechanical blending force and the occurred
air power, realize the process of the fine powder continuous being blended,
granulated, balled, densified,thereby achieving the purpose of granulation. The
shape of granule is spherical, and the size of the granule can be adjusted
according to the mixing amount of materials and the main shaft speed, the lower
the mixing amount, the higher the speed of rotation, the smaller the
granule,and vice versa.

Model TDJZ-600 TDJZ-800 TDJZ-1000 TDJZ-1200 TDJZ-
1500
Installation Angle 2°-2.5° 2°-2.5° 2°-2.5°
2°-2.5° 2°-2.5°
Capacity(t/h) 1-1.5 1.5-2.5 2-4 4-6 6-8
Total Power(kw) 37 55 75 90 110
Moisture Of Feeding Material 35%-45% 35%-45% 35%-45% 35%-45% 35%-45%
Size Of Feeding Material (mesh) 50 50 50 50 50
Dimensions 4100*1600*1150 4250*1850*1300 4700*2350*1600 4900*2550*1800
5500*2800*2000
Applicable raw materials:

1. chicken manure ,pig dung,cow manure, carbon black,pottery clay ,kaolin etc.

2. also apply to granulation of fine powder material.The finer the powder
materials, the higher sphericity of granule, and the pellet quality is more
better, granulation rate ≥97% .

1-1.5T/H Fertilizer Pelletizer Organic Fertilizer Granulator Machine 0

FAQ:

1. Are you trading company or manufacturer ?
We are a manufacturer with a history over 40 years and have realized one-stop
service for design, manufacture, installation, debugging and technical
training.
2. How long is the delivery time?
For standard machines or Components, it would be 5-10 days; For non-standard
machines and customized machines according to clients specific requirements, it
would be appointment time.
3. Do you arrange shipment for the machines?
Yes, we will do that. For FOB or CIF price, we will arrange shipment for you.
For EXW price, we will assist you in arranging shipment.
4. How about your product after-sales service?
Normally we provide video and written technical support. If necessary, our
engineers can also provide on-site service. Our product accessories can be
selected according to the actual needs of the customer to choose the most
appropriate way to deliver.
5. What kinds of certificate you have?
ISO 9001: 2015 SGS and we can make other certificates according to customers'
detailed requirements.
6. How to guarantee the quality and operation before loading?
We have our own quality control department and have advance quality control
stystem while from raw materials to finished products. All the machines and
production lines shall be 100% checked and tested before delivery.
