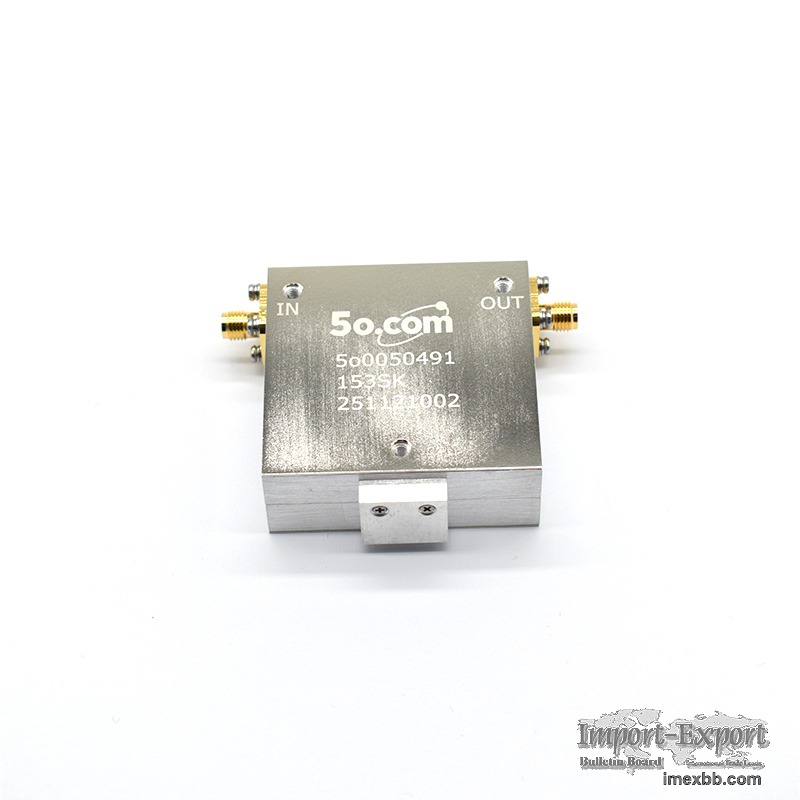

1.5 to 3.0GHz Full Band RF Coaxial Isolator

Part Number:5o0050491153SK
Frequency Range:1.5~3.0GHz
Insertion Loss;0.5dB
Isolation:17dB
VSWR:1.35
Forwa , rd Power:100W
Reverse Power:30W
Temperature:0 ~ +70℃
Dimension:50.8*49.5*19mm

Applicat , ion
RF power amplifier protection.
Digital, Satellite, Mobile Communication.
Medical, Communication, Security.
Military, Space and Commercial applications.

It can be dual junction or even three for high isolation.
Built to the rigorous standards required for commercial implementations,
military and space.
Custom design is available upon request.
Standard guaranteed for one year.

5o.com Inc. is a modern high-tech enterprise specializing in passive RF and
microwave components, integrating R&D, production, and sales. The company
focuses on technological innovation as its core and relies on technology
leadership.
The company's main products: Microwave RF isolators, circulators, coaxial
terminations, coaxial attenuators, power splitters/dividers, waveguide to
coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers
and other microwave passive components.

Minimum Order: 1 pieces
