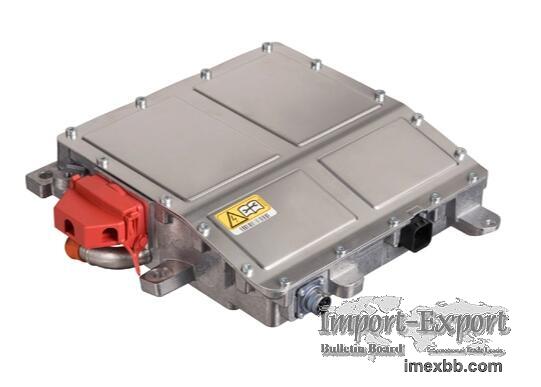

1.5KW DC/DC Converter Unit

Product Features

Adopt advanced high-frequency switching control technology, effectively
reducing the size of the product, with the characteristics of high power
density.

Support 240 ~ 450Vdc wide range input, flexible to adapt to different models.

High safety electrical isolation of input and output.

Meet the requirements of automotive-grade electromagnetic compatibility.

With functions of over-under voltage protection, over-current protection, over-
temperature protection and short-circuit protection, providing safe and
reliable assurance.

Standard CAN 2.0B interface design, supporting standard UDS diagnostic
development.

Strategy can be customized according to the needs of the whole vehicle, and all
software can be upgraded online.

Specification of 1.5KW DC/DC Converter Unit
1.5KW DC-DC Converter
Output power 1.5KW
Efficiency 95%
Input voltage 200V DC-420V DC
Output voltage 12-14V DC
Working voltage range 6-18V
Water proof IP67
Heat Dissipation Air cooling/Water cooling/Self-cooling
Control method CAN 2.0B
Net weight 5.65KG
Dimension 307.5*180*108mm

Characteristics of 1500W DC DC Converter Unit
In the application of DC/DC converters for electric vehicles, the use of smart
switching technology enables efficient operation at higher frequencies. By
using smart switching technology, the maximum switching frequency of the EV
DC/DC converter can be increased to 1.5 kHz, thus increasing the charging
efficiency of the EV to more than 80%. At the same time, the loss and
temperature rise of the EV DC/DC converter can be effectively reduced by using
smart switching technology.

For the design requirements of the DC/DC converter of electric vehicles, power
control technology can be used to realize the control of the heat generated
during the operation of the DC/DC converter. The power control technique
enables efficient operation at lower frequencies.

Now the price of electric axle drive unit is reasonable, if you have needs,
please contact us.
