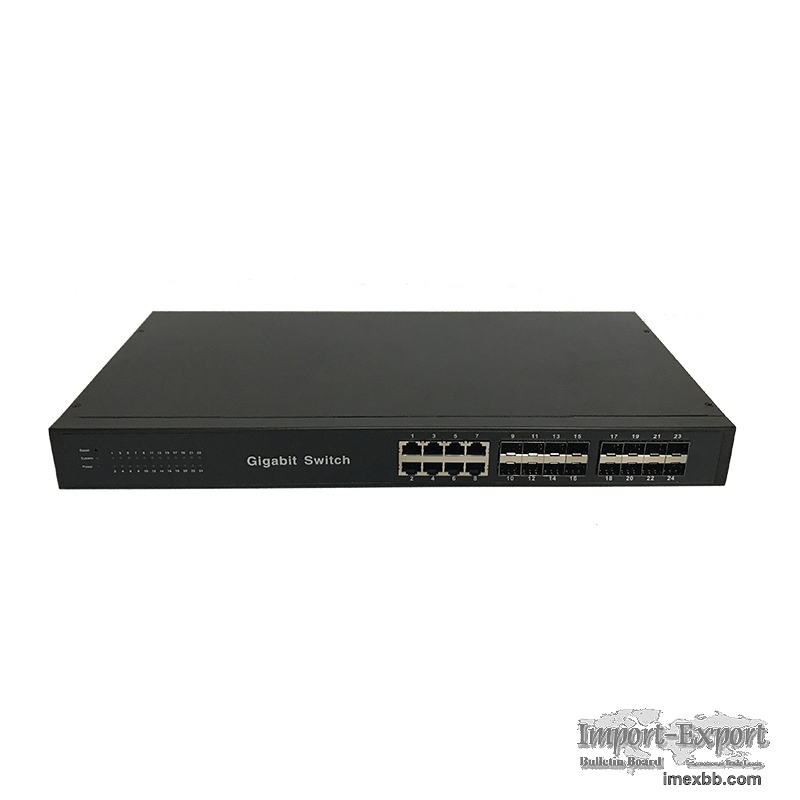

10/100/1000Mbps Fiber Optic Switch

Huabo Group is the original manufacturer of fiber optic equipment in
Shenzhen,China. We mainly deal with 1.25G/10G Fiber Media Converter /
Switch,POE Switch,Network Switch,Industrial Switch,SFP Modules and
communication equipment. Also, we offer OEM/ODM for world top brands.

10/100/1000Mbps Fiber switch 1G2E
The HS 1G2E is a 1000M gigabit fiber optic 1gbps switch with 1 1000M fiber port
and 2 10/100/1000Mbps RJ45 ports. There are both SC and SFP versions optional.
For most gigabit switches, we developed both S...

10/100/1000Mbps Fiber switch 1G4E
The HS 1G4E is a 1000M gigabit fiber optic switch with 1 1000M fiber port and 4
10/100/1000Mbps RJ45 ports. There are both SC and SFP versions optional. For
most gigabit switches, we developed both S...

10/100/1000Mbps Fiber switch 1G4EM
The HS 1G4EM is the mini version of 1G4E. It is a mini size 1000M gigabit fiber
optic switch with 1 1000M fiber port and 4 10/100/1000Mbps RJ45 ports. For the
mini size, as the PCB has been deployed ...

10/100/1000Mbps Fiber switch 1G8E
10/100/1000Mbps Fiber switch 1G8E
The HS 1G8E is a 8 port gigabit fiber optic switch with 1 1000M fiber port and
8 10/100/1000Mbps RJ45 ports. Both SC and SFP connector types are available for
this model. 1F8E is 100M switch version ...

10/100/1000Mbps Fiber switch 2G2E
The HS 2G2E is a 4 port gigabit fiber optic switch with 2 1000M fiber port and
2 10/100/1000Mbps RJ45 ports. Both SC and SFP connector types are available for
this model.How to Choose? Gigabit Switch...

10/100/1000Mbps Fiber switch 2G4E
The HS 2G4E is a 6 port gigabit fiber optic switch with 2 1000M fiber port and
4 10/100/1000Mbps RJ45 ports. Both SC and SFP connector types are available for
this model.2G4E offers rapid and stable ...

10/100/1000Mbps Fiber switch 2G8E
The HS 2G8E is a 8 port gigabit fiber optic switch with 2 1000M fiber port and
8 10/100/1000Mbps RJ45 ports. Both SC and SFP connector types are available for
this model. 2G8E offers fast and secure ...

10/100/1000Mbps Fiber switch 4G2E
The HS 4G2E is a 6 port gigabit fiber optic switch with 4 1000M fiber port and
2 10/100/1000Mbps RJ45 ports. Both SC and SFP connector types are available for
this model. The switch provides two Ethe...

10/100/1000Mbps Fiber switch 8F1GE
The HS 8F1GE is a 8 fiber port gigabit fiber optic switch with 8 100M fiber
ports and 1 10/100/1000Mbps RJ45 ports. As the fiber port is only 100M, we
develop only SC connector type. But thtere are b...

10/100/1000Mbps Fiber switch 8F2GE
The HS 8F2GE is a 8 fiber port gigabit fiber optic switch with 8 100M fiber
ports and 2 10/100/1000Mbps RJ45 ports. As the fiber port is only 100M, we
develop only SC connector type. But thtere are b...

10/100/1000Mbps Fiber switch 8F1E
The HS 8G1E is a 8 fiber port full gigabit fiber optic switch with 8 1000M
fiber ports and 1 10/100/1000Mbps RJ45 ports. As the fiber port is also
gigabit, we offer you both SC and SFP connector type...

10/100/1000Mbps Fiber switch 8G2E
The HS 8G2E is a 8 fiber port full gigabit fiber optic switch with 8 1000M
fiber ports and 2 10/100/1000Mbps RJ45 ports. As the fiber port is also
gigabit, we offer you both SC and SFP connector type...

Advantages of Gigabit Fiber Switch
Cost-effective. The use of switch hub 1000mbps can reduce costs. For buildings
with fiber optics, fiber-optic Ethernet connections are much less expensive
than circuit connections based on DS3 or high-speed ATM services, in the
meanwhile, the whole network access is also more efficient.

The application of 10/100/1000Mbps fiber switch efficiently delivers the
commitment of latency, jitter, and bandwidth levels. To submit user-specified
latency and jitter levels, fiber Ethernet networks utilize technologies
developed in the IETF. When a packet is transmitted into the network, the
information in the packet will be used to assign the packet to a specific
service category. In the contract users can also specify certain bandwidth, and
the network operator guarantees such bandwidth by restricting the number of
guaranteed services within the network capacity range.

Diversified access methods. Fiber Ethernet switches can not only be used both
for the network access but also for the backbone networks provided by local
ISP. It can be used only in layer 2 or also as an effective way to implement
layer 3 networking. It supports IP, IPX, and other traditional protocols. In
addition, as it still belongs to LAN networking, it can help greatly about the
interconnection between enterprise LANs and corporate LANs and other networks.

Specifications of Gigabit SFP Switch:
Ports 2*1000 Base –SX/LX SC Port
4*10/100/1000Base-T RJ45 Port
Copper Interface RJ-45 port(Auto-MDI/MDI-X) Twisted Pair
Optic Interface SC
Standards Compliance IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX
IEEE 802.3x Full-duplex flow control
MAC Table Size 8K
Jumbo Packet Size 10K
Back Bandwidth 12G
LED Indicator PWR
TP LINK/ACT
Fiber LINK/ACT
Power Input Voltage: AC100V～240V /DC 5V2A
Power Consumption: 1.1W-2.5W
Emissions FCC Class A
CE Class A
RoHS / CCC

Working Environment
Operating Temperature: -10～55℃
Storage Temperature: -40～70℃
Relative Humidity: 5-95% ( non-condensing)
Dimension 160*84*26MM
Weight 0.3KG
Warranty 2 Years

Installation of Gigabit Fiber Switch:

Application of Gbe Switch：

Ordering Information：
Product Model Product Description
BLY-2G4E-A/B20 10/100BASE-TX to 100BASE-FX SC Fiber Switch SMF,20KM
BLY-2G4E-S20 10/100BASE-TX to 100BASE-FX SC Fiber Switch DF,20KM

10G Fiber Converter
This HS-W10G-F series 10gbe SFP+ to rj45 converter extends network distance
with highly 10G performance via fiber optic cable.

Minimum Order: 500 dozens
