100L Laboratory Bead Mill Machine Non Explosion Proof Aro Diaphragm Pump

55 KW Non Explosion-proof Aro Diaphragm Pump 100L Bead Mill Machine


1. 100L Bead Mill Machine Technical Data


No Main Parameters SP100 Note
1
Motor power
(kW)

55 kW Ex-proof/non ex-proof available
2
Effective volume of

grinding chamber (L)

100L volume can be suggested according to different grinding materials and
usages
3
Water pressure
(MPa)

0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advision: Users
offer the Cooling water less 10°C
5
Dimensions:L*W*H
(mm)

1900*900*1950
6
Weight
(kg)

1800


2. 100L Bead Mill Machine Configuration Instructions

No Main parts SP100 Notes
1 Material of External vessel SUS 304 stainless steel
2 Material of Inner grinding vessel 9Cr18Mo alloy steel, SUS 304
stainless steel different mateials for choice
3 Material of Dispersing shaft 40Cr with hard chromium plating
4
Material of Dispersing disk

(agitator disk)

SUS 304 stainless steel
5 Feeding and discharging end covers on the cylinder SUS 304 stainless
steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps:
0.5mm.
7 Mechanical seal
Intelligent double mechanical

seal with mandatory

screwing-cooling system


8 Feeding pump 1.5” ARO diaphragm pump; IngersoII Rand








9

Industries of Application coatings, paints, inks, food, food addictive,
powder,mining, etc
10 Patent
multi-patents technology applied in these bead mill machine

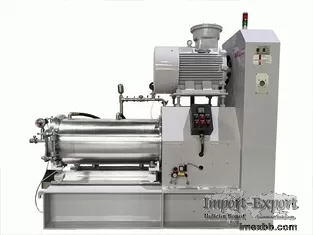

3.Display of Horizontal Sand Mill Machine

100L Laboratory Bead Mill Machine Non Explosion Proof Aro Diaphragm Pump 0100L
Laboratory Bead Mill Machine Non Explosion Proof Aro Diaphragm Pump 1
4. Display of manufacturing Equipments

100L Laboratory Bead Mill Machine Non Explosion Proof Aro Diaphragm Pump 2

Imported form America, HAAS 1600 Series, valued 2.6 million RMB, used to process
key parts to ensure small runout of end face, steady operation.

100L Laboratory Bead Mill Machine Non Explosion Proof Aro Diaphragm Pump 3

Brand TAIWAN JIUYUAN, precision CNC.


5. Advantages Of Bead Mill Machine

A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is
the fist Chinese designer, and over 27 years innovation in technical, the grinding
machine has gained famous brand and great reputation in China.

B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel,
which had purchased over 20 units sinced 2004. Both high quality and great service
can help to contribute cooperation.

C. Master key technology of grinding and dispersing, ensured higher efficiency,
lower temperature, less person and greater finness than other competitors.


6. Culture of ALLWIN company

❶Company Target: to be a better service-provider and manufacturer in grinding
and dispersing.

❷Product Mind: to produce great machines for great enterprises which are
facing future, starving to development.

❸Service Aim: to creat values for user-centered customers.

❹Cooperation Principle: to solve the problem with mutual benefits.
