10mm Micro Stepper Motor 5VDC 10BY25 PM Mini Stepping Motor

10mm Micro stepper Motor 5VDC 10BY25 PM mini Stepping Motor

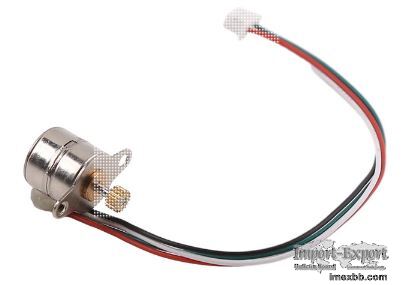

VSM1070 is a precision miniature stepping motor with an outer diameter of 10mm,
a motor height of 9.2mm, and an output shaft diameter of 1.5mm. The length of
the output shaft can be appropriately changed according to customer
installation requirements, and can also be equipped with gears, pulleys, worms,
lead screws, etc. output device.

Because of its small size, high precision, easy to control and other excellent
characteristics, so this micro stepper motor is widely used in the camera,
optical instruments, lenses, precision medical devices, automatic door locks
and other fields.
The motor input part of the FPC, but can according to the customer demand can
be changed to a connecting line needle, PCB and other forms.

The mounting bracket can be changed according to the customer's request.


10mm micro stepper motor parameter sheet:

PRODUCT NAME 10 MM MICRO STEPPER MOTOR
MODEL VSM1070
MAX. STARTING FREQUENCY 1250 PPS min. (AT 5.0 V DC)
MAX. SLEWING FREQUENCY 1950 PPS min. (AT 5.0 V DC)
PULL IN TORQUE 5.4 gf-cm min. (AT 500 PPS , 5.0V DC)
PULL OUT TORQUE 6 gf-cm min. (AT 500 PPS , 5.0V DC)
INSULATION CLASS CLASS E FOR COILS
INSULATION STRENGTH 100V AC FOR ONE SECOND
INSULATION RESISTENCE 1 MΩ (DC 100 V)
OPERATING TEMPERATURE RANGE -10~+60 ℃
OEM & ODM SERVICE AVAILABLE
