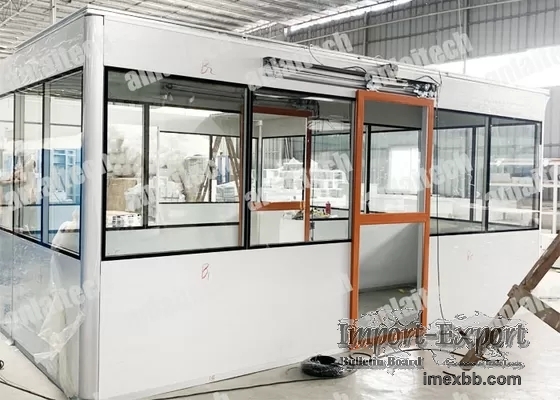

110V H14 Hepa Filter Pharma Clean Rooms Sandwich Panel Modular 6600m3/H

Product Description
Wholesale Sandwich Panels Clean Room For Pharmaceut Modular Cleanroom

Clean Room Modular is a kind of clean room, it can quickly improve the cleanliness
of the equipment. Because of its low cost, convenient and flexible asembly, it is
widely used in optical, electronic assembly line work, laboratories, assembly area
local area purify occasions. The clean booth adopt to FFU generating winds, with
industrialize aluminum(stainless steel or painting steel) as it's frame and static-
free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-
100K.





Configuration:



Parameter Softwall Clean Booth Hardwall Clean Booth
Cleanliness From Class 100 to Class 1000,000
External Dimension As per requirement
FFU Dimension 2'X4'
Cabinet Material Stainless Steel
Power source 110V/60hz/av/dc, 220V/60HZ/AV/DC
HEPA Filter H14 Hepa filter
Frame Material Stainless Steel
Wall Material Anti-static soft PVC wall 106~109Ω Anti-static acrylic
106~109Ω
Lighting Lamps Available in LED and T5
Air condition As per requirement Available in constant temperature air
conditioner/constant temperature and humidity conditioner
Besides above configuration, we can customized as required.



Technical Paremeters:

Model Inner dimension Number of Air volume(m3/h)
W * D * H (mm) FFU
ALCS6 * 8 2000 * 3000 * 2400 6 6600
ALCS 8 * 12 2440 * 3660 * 2400 12 13200
ALCS 8 * 16 2450 * 4880 * 2400 16 17600
ALCS 8 * 20 2440 * 6100 * 2400 20 22000
ALCS6 * 8 2000 * 3000 * 2400 2 2200
ALCS 8 * 16 2440 * 4880 * 2400 4 4400
ALCS 12 * 16 3660 * 4880 * 2400 6 6600
ALCS 20 * 24 6100 * 7300 * 2400 12 13200
ALCS6 * 8 2000 * 3000 * 2400 1 1100
ALCS 8 * 16 2440 * 4880 * 2400 2 2200
ALCS 12 * 16 3660 * 4880 * 2400 4 4400
ALCS 20 * 24 6100 * 7300 * 2400 8 8800
ALCS16 * 24 4880 * 7300 * 2400 2 2200
ALCS18 * 30 5480 * 9150 * 2400 4 4400
ALCS20 * 42 6100 * 12800 * 2400 6 6600
Please contact with us for your best clean room solutions.



PRODUCT FEATURES:
Flexible assembly: Compared to the tradtitional clean booth it is easy to
installation, cost effective with less investment and quick return, as it cost
shorter construction period in the assembling frame by manufacturer.


Selected high quality material: import for the grind curtain and adjustable plastiv
cup and universal wheel, convenience for installation and maintance.


Humanized structure: Compared to the clean bench it has the multi-function, which
can be used as a unit or combined with another clean equipment together. Even you
can assemble it on the production line to change dust-free production.


Flexibility: Less limitation or low requirements for the floor and spot situation,
the iner space is enough to use and the frame canbe recycled
