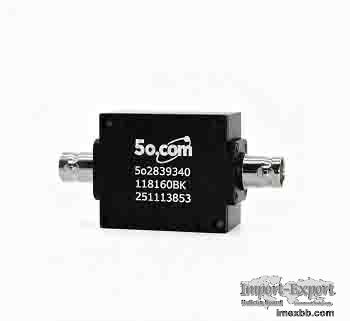

118 to 160MHz VHF Band High Pass Filter RF Filters

Part Number:5o2839340118160BK
Frequency Range:118~160MHz
Insertion Loss:0.9@118MHz
0.4@127~160MHz
VSWR:1.3 @127~140MHz
Rejection:25dB @88~108MHz
Connector Type:BNC-K
Dimension:39*34*20mm
Frequency range up to 20GHz.

Built to the rigorous standards required for commercial implementations,
military and space.
Boasts a performance trio of low insertion loss, high isolation, and robust
power handling.
Custom design is available upon request.
Application
Wireless communication system.
Audio processing, image and data acquisition.
Biomedical signal processing.
Radar and sensors.
It supports a one-year standard warranty.

5o.com Inc. is a modern high-tech enterprise specializing in passive RF and
microwave components, integrating R&D, production, and sales. The company
focuses on technological innovation as its core and relies on technology
leadership.
The company's main products: Microwave RF isolators, circulators, coaxial
terminations, coaxial attenuators, power splitters/dividers, waveguide to
coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers
and other microwave passive components.
Focusing on cutting-edge fields such as 5G communication, satellite navigation,
radar electronic countermeasures, and aerospace, we provide customers with
high-performance microwave passive device integrated solutions.
We fulfill our corporate mission of achieving customer success with high-
quality products, attentive service and outstanding social responsibility, and
are committed to becoming a global benchmark in RF microwave components.

Minimum Order: 1 pieces
