120L Paint Tank Thermoplastic Road Line Marking Machine Bulge Thickness 3-5

Description
120L Paint Tank Thermoplastic Road Line Marking Machine Bulge Thickness 3-
5mm Adjusted
Thermoplastic Vibration Line Road Line Marking Machine

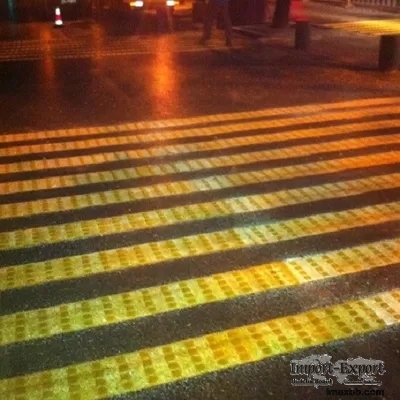

Vibration Marking Is A Kind Of Marking Which Is Widely Used In Developed
Countries. Its Shape Is Concave And Convex. When A Car Passes By, It Will
Have A "Boom" Sound. It Has A Good Warning And Reminding Effect On The
Driver, So It Is Also Called Noise Markin



120L Paint Tank Thermoplastic Road Line Marking Machine Bulge Thickness 3-
5mm Adjusted 0



WAGE Vibration Road Line Marking Machine Has The Following Functional:

1. Adopt Automatic Oil Pressure Stepless Speed Change Driving Mode,
Automatic Walking, To Ensure Uniform And Efficient Construction Effect;

2. The Scriber Adopts Stainless Steel Insulating Material Coatings Barrel
And Inserting Manual Mixing Device To Ensure The Best Temperature And Shape
Of The Melt.

3. Unique Marking Hopper, Which Makes The Shape, Spacing And Height Of
Marking Protrusion Precise And Accurate, Makes The Marking Of Hot Melt
Oscillation Complete At One Time, And Has Strong Wear Resistance And Impact
Resistance.

4. Synchronized Clutch Glass Bead Sprayer Makes The Glass Beads More Evenly
Scattered On The Marking Line.

5. It Is Equipped With Speed Regulating Gear Shifting Device And Rear Wheel
Positioning System To Ensure That The Equipment Is Fixed And Straight Ahead.



120L Paint Tank Thermoplastic Road Line Marking Machine Bulge Thickness 3-
5mm Adjusted 1

Parameters:



HG-VM
motor 5.5HP Gasoline
moving speed 12km/h
Grade ability 15°MAX 15°
cylinder capacity 120kg/桶
Glass Micro sphere cylinder capacity 12kg/箱
Bulge thickness 3-5mm(adjustment)
standard width 150mm
size options 150/200/300/450mm(marking scoops replacement)
size (L*W*H)mm 1400*1100*1200mm
Weight 210kg


Main Parts:

120L Paint Tank Thermoplastic Road Line Marking Machine Bulge Thickness 3-
5mm Adjusted 2120L Paint Tank Thermoplastic Road Line Marking Machine Bulge
Thickness 3-5mm Adjusted 3





Construction Spot:

120L Paint Tank Thermoplastic Road Line Marking Machine Bulge Thickness 3-
5mm Adjusted 4
