12LED 5050SMD 20W 30W LED Street Light Module With Heatsink

2x6 12 LED 5050SMD 20W 30W Street light module with heatsink 200x72x40mm





Quick Detail:



Model No:SUN-LD2X6CR145x70-TPIII-M-V

Material: PC

Beam Angle : 145X70 degree

Lens size:173X71.4X7.51mm

Heatsink size:200x72x40mm (20-30w)

Circuit: 2 series 6 parallel 48v output / 12 LED in parallel 24v output

Led chips:5050SMD LED 24V white color, 3000-6500k

Lense array of 12 LEDs

Small footprint, high light output





Features :



This SKD 12 LED Array lens with PCB Module is best choice to retrofit the old
lamps 10-30W or design power lamps.
It’s the lowest total cost solution ,they can replace existing Metal Halide or
HPS bulbs, the old housings can be re-used. The total cost is significantly
reduced compared with using new complete LED fixtures.
Industry-leading thermal management utilizing technology
Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
The LED retrofit kits contain no any mercury or lead.
Does not produce UV rays that harm people’s eyes.
Directional light means no light pollution, dark sky compliance.
Optic lenses are available for projects that need smaller beam angles, like
129X55degree ,60X60 degree ,12 degree ,30X90 degree ,30degree ,90 degree,60
degree, 145x53 degree,150x80 degree,157x57 degree,160x63 degree, 157x81 degree,
etc.

.



Applications:



It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road
lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area
,retail lighting and other applications where high luminous flux is desired.





Specifications:



1, Product Name

2x6 12 LED 5050SMD 20W 30W Street light module with heatsink 200x72x40mm

2, Model No

SUN-LD2X6CR145x70-TPIII-M-V

3, Main parts

12 Array lens , silicon gasket+PCB +heatsink

4, Lens Material

PC

5, Lens size

173X71.4X7.51mm

6, Transmittance

93%

7,LEDS

5050 , SMD 1-5W 24V LED

8, Sample

3-4 work day

9, Delivery

5-7 work days for 300 sets

10, Angle

145x70 degree, TYPE3-M

11, Quality guarantee

If you receive defective items, please email us a picture of the defective
part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia





Shipping and delivery time:



DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOBEXWCIFCFR

Sample availability

YES

Delivery time

3-4 working days









2x6 LENS Dimensions And Beam pattern:



12LED 5050SMD 20W 30W LED Street Light Module With Heatsink 0

12LED 5050SMD 20W 30W LED Street Light Module With Heatsink 1

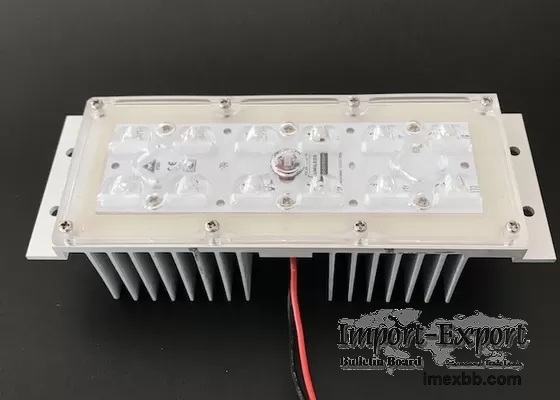

LED module with heat sink:



12LED 5050SMD 20W 30W LED Street Light Module With Heatsink 2

12LED 5050SMD 20W 30W LED Street Light Module With Heatsink 3

12LED 5050SMD 20W 30W LED Street Light Module With Heatsink 4
