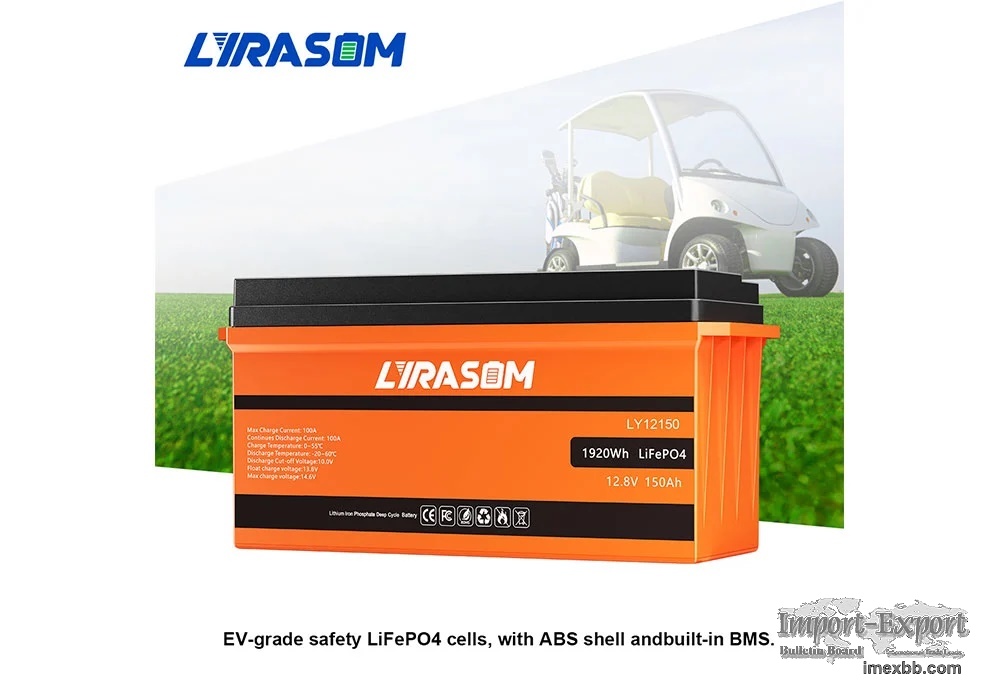

12V 150AH LIFEPO4 BATTERY

A 12V 150Ah LiFePO4 battery is a high-capacity, long-lasting, and lightweight
rechargeable battery used in various applications, including electric vehicles,
solar power systems, and marine applications. It offers superior energy
efficiency, low self-discharge rates, and increased safety compared to
traditional lead-acid batteries.

Specification of 12V 150Ah LiFePO4 Battery
Model LY1260 LY12100 LY12150 LY12200
Nominal Capacity 60Ah 100Ah 150Ah 200Ah
Nominal Voltage 12.8V
Energy 768Wh 1280Wh 1920Wh 2560Wh
Charge Voltage 14.6 14.6 14.6 14.6
Discharge cut-off voltage 10V 10V 10V 10V
Charge Method CC/CV CCICV CCICV CC/CV
Standard Charge Current 30A 50A 50A 50A
Max. Charge Current 60A 100A 100A 100A
Standard Discharge Current 30A 50A 50A 50A
Max. Continues Discharge current 60A 100A 100A 100A
Peak Current 100A≤5s 150A≤5s 150A≤5s 150A≤5s
Cycle Life,@25°C 6000+ times 6000+ times 6000+ times 6000+
times
Internal Impedance ≤60mΩ ≤50mΩ ≤40mΩ ≤35mΩ
Output Connector M8 Terminal
Weight 7kg 10.3kg 14.3kg 18.5kg
Working Temperature Range Charge: 0°C~-55°C
Discharge: -20C~-60C
Storage Temperature -10~50°C
Self-discharge Rate <3% per month
Dimension(LxWxH,mm) 229x144x211 340x185x220 502x187x244
502x187x244
Plastic Case ABS
IP Protection IP65
Certifications UN38.3 CE ROHS

Advantages of Lithium 12V 150Ah LiFePO4 Battery12v 150ah lithium ion battery

Excellent energy efficiency: Compared to conventional lead-acid batteries, the
12V 150Ah Lithium Ion battery offers more power and longer runtimes.

Longer longevity: Compared to lead-acid batteries, LiFePO4 batteries have a
substantially longer lifespan, which eliminates the need for frequent
replacements and offers a cost-effective option.

Low self-discharge rate: LiFePO4 batteries have a low self-discharge rate,
which allows for longer storage without the need for maintenance charging.

More safety: LiFePO4 batteries are less likely to experience thermal runaway,
explosion, or fire than conventional lithium-ion batteries, making them a
dependable and risk-free option for many applications.

We can offer kinds of battery storage energy system for sale, if you have
needs, please contact us.
