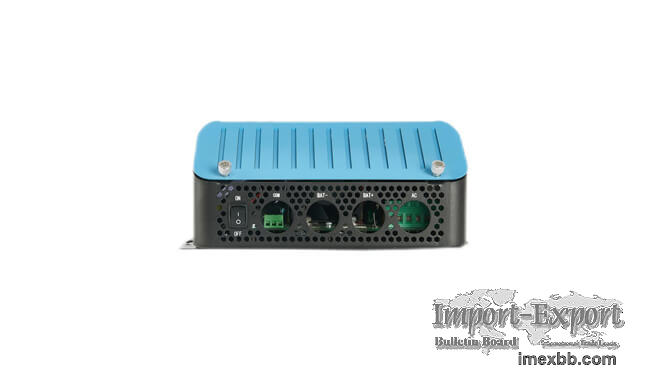

12V 220V 1000W COMBINED INVERTER CHARGER

The cosuper CMT1000 model is an intelligent power supply integrating battery
inverter, AC charger and AC/DC automatic transfer switch into a single unit,
which is specially designed and developed for mobile vehicles.

This 1000W inverter charger is the ideal size for most simple setups. Its
compact, lightweight and easy-to-use design makes it perfect for installation
in the cockpit of RV, caravan, ambulance and a lot more.

With Continuous 1000W pure sine wave output, it is able to run laptops,
televisions, phone or camera chargers and most sensitive devices.

Charge all your electrical equipment anytime, anywhere on the go with the
Cosuper CMT series inverter charger.

FEATURES OF 12V 220V 1000W COMBINED INVERTER CHARGER


CAN-BUS+RS232 communication

Automatic transfer switch between DC and AC power within 10ms

Low THD ensure sensitive loads working stably

MAX. 90A charge current for AGM/GEL/Flooded/Lithium batteries

PTM-12 remote controller makes it convenient for you to observe and control
from a distance

Extra charging function for starter battery

Keep working continuously with full power output at -10~50℃

Battery temperature compensation charging design in cold and warm conditions,
helps prolong the battery life.

Ultra-low idle consumption could effectively save the energy

Auto GEN start/stop

Electronic protection against Over/under voltage, overload, overheating, short
circuit

2 years warranty

TECHNICAL SPECIFICATIONS OF 12V 220V 1000W COMBINED INVERTER CHARGER
Models CMT1000
Rated Power(-10-50℃) 1000W
DC Input
Rated Voltage 12VDC (10.0~16.0VDC)x2 for 24VDC
Max. Charge Current 45A-house battery ; 3A-start battery
Battery Type AGM/Gel/Flooded/Lithium
AC Input
Output Voltage 170-275VAC
Input Frequency 45~65Hz
AC Output
Output Voltage 110/120VAC±5%; 230/240VAC±5%
Oput Frequency 50/60Hz±0.3
Wave Form Pure Sine Wave
Transfer Time ≤8ms
Efficiency >88%
Overload 105-120% 10s/ >120% 3s/ >150% 1s
Max. Bypass 6000W
Protection DC over/low volt, AC input low/low volt, AC short circuit, over
temp, overload
Self-consumption 20.0W
Idle-consumption 19.0W
Protection
DC Low-volt Alarm/Shutdown 10.5V (Customizable at Engineering mode)
AC Low-volt Switch To DC 187.0V (Customizable at Engineering mode)
Bypass To Invertering 198.0V (Customizable at Engineering mode)
Battery Over-charge Shutdown 16.5V
General
Working Temperature -10~45℃
Storage Temperature -20~70℃
Work/ Storage Humidity 0-90% No condensation
Dimension (W*D*H) 450*255*104mm

Now the price of small inverter for laptop charging is affordable, if you have
needs to buy a laptop inverter charger, please contact us.

We can provide different kinds of bulk inverter for sale, anything you need,
please leave us a message.

As an inverter distributor, we will do our best to meet all the needs of
customers.

Minimum Order: 100 pieces
