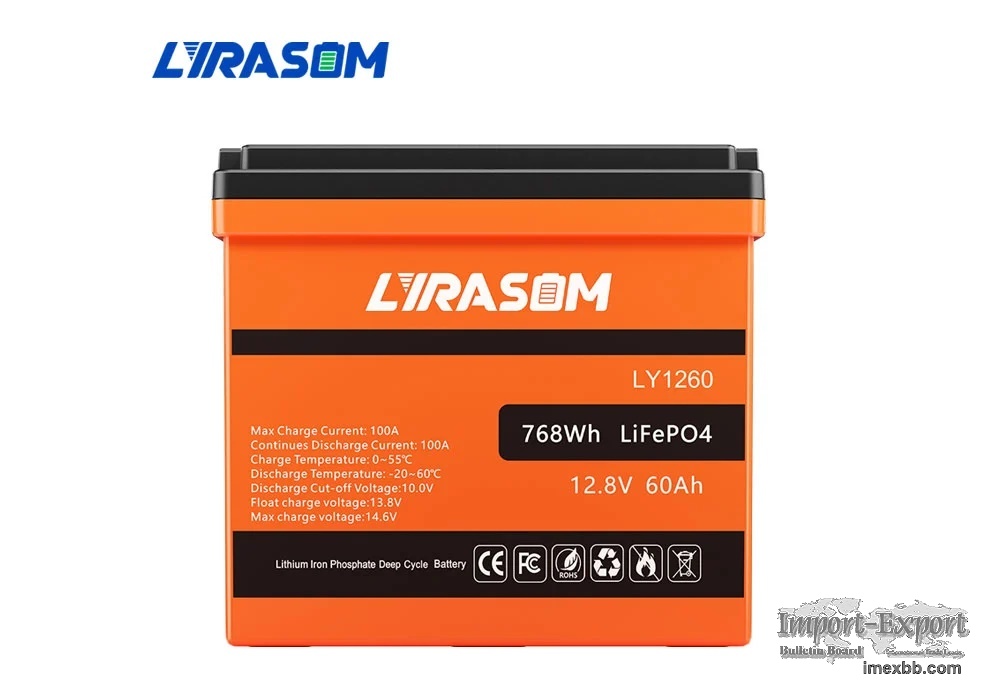

12V 60AH LIFEPO4 BATTERY

A 12V 60Ah LiFePO4 battery is a lightweight, high-capacity rechargeable battery
that is commonly used in electric vehicles, solar power systems, and off-grid
applications. It provides long-lasting power, high energy efficiency, and
improved safety features compared to traditional lead-acid batteries.

Specification of LiFePO4 Battery 12V 60Ah

Model LY1260 LY12100 LY12150 LY12200
Nominal Capacity 60Ah 100Ah 150Ah 200Ah
Nominal Voltage 12.8V
Energy 768Wh 1280Wh 1920Wh 2560Wh
Charge Voltage 14.6 14.6 14.6 14.6
Discharge cut-off voltage 10V 10V 10V 10V
Charge Method CC/CV CCICV CCICV CC/CV
Standard Charge Current 30A 50A 50A 50A
Max. Charge Current 60A 100A 100A 100A
Standard Discharge Current 30A 50A 50A 50A
Max. Continues Discharge current 60A 100A 100A 100A
Peak Current 100A≤5s 150A≤5s 150A≤5s 150A≤5s
Cycle Life,@25°C 6000+ times 6000+ times 6000+ times 6000+
times
Internal Impedance ≤60mΩ ≤50mΩ ≤40mΩ ≤35mΩ
Output Connector M8 Terminal
Weight 7kg 10.3kg 14.3kg 18.5kg
Working Temperature Range Charge: 0°C~-55°C
Discharge: -20C~-60C
Storage Temperature -10~50°C
Self-discharge Rate <3% per month
Dimension(LxWxH,mm) 229x144x211 340x185x220 502x187x244
502x187x244
Plastic Case ABS
IP Protection IP65
Certifications UN38.3 CE ROHS

Features of 12V 60Ah LiFePO4 Battery
Lightweight: The Lithium 12V 60Ah LiFePO4 battery is significantly lighter than
traditional lead-acid batteries, making it easier to handle and transport.

High capacity: With a 60Ah capacity, this battery provides long-lasting power
for a variety of applications.

Improved safety: LiFePO4 batteries are less prone to thermal runaway and
explosion compared to other lithium-ion batteries, making them a safer choice.

Low self-discharge rate: LiFePO4 batteries have a much lower self-discharge
rate than lead-acid batteries, allowing for longer periods of storage without
the need for maintenance charging.

Applications of 12V 60Ah LiFePO4 Battery
Electric vehicles: 12V 60Ah LiFePO4 batteries are commonly used in electric
vehicles like electric bicycles, electric scooters, and golf carts for their
high performance and long lifespan.

Solar power systems: LiFePO4 batteries are ideal for use in solar power systems
as they can store and discharge energy efficiently and withstand the cycling
demands of daily use.

Marine applications: With its high energy density, lightweight, and long
cycling life, the 12 Volt 60 Ah Lithium Battery is becoming popular as a
replacement for lead-acid batteries in marine applications.

Off-grid power solutions: LiFePO4 batteries are commonly used in off-grid power
solutions like camping and RV applications, where a reliable, lightweight, and
durable power source is required.

As one of battery energy storage system companies, we will provide more types
of related products for sale, if you have needs, please contact us.
