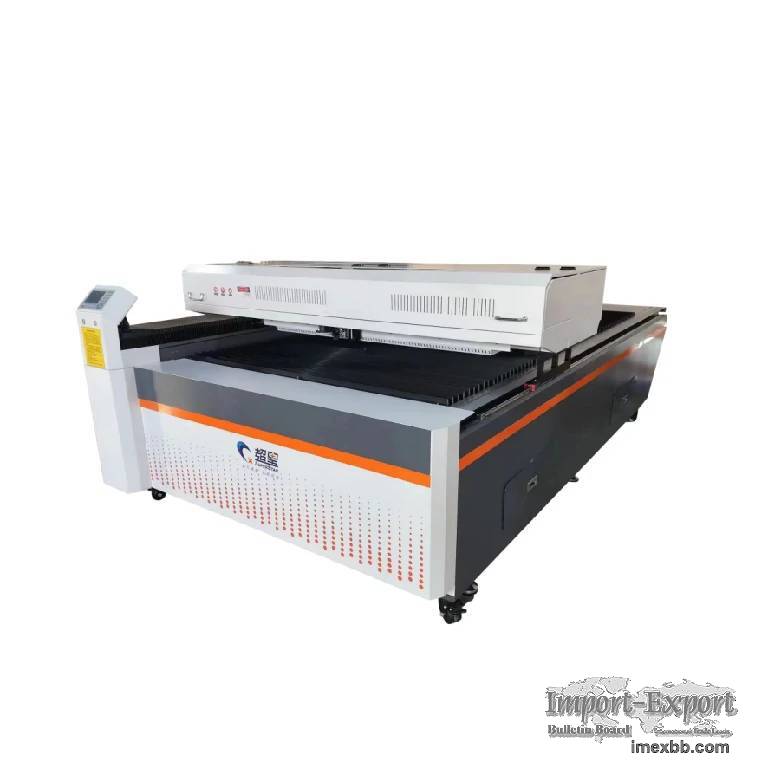

1325PH 300w CO2 laser cutting machine

Co2 Laser Machine Function :
1.Industrial linear module. The X-axis screw transmission component is a
sealed industrial linear module with higher accuracy, longer dust-proof
structure life, and less maintenance.
2.Using a 300w high-power laser tube. Supports high-power and more reliable
optical lenses.
3.Plate tube integrated steel pipe welding. The body adopts high-strength and
heavy-duty equipment with a thickness of over 5mm, and the installation
surface of the rack guide rail is finely processed and slotted by a CNC
gantry milling machine.
4.Automatic exhaust, automatic blowing. More user-friendly features such as
servo status lights on the control panel, dual color ambient lighting for
machine tool status, and a foldable electrical installation board for easy
maintenance and repair.
Model 1325PH-300W
Laser type Co2 Enclosed Laser Tube 300W SLW
Maximum Processing Range At One Time 1250*2450mm
Maximum Feed Width 1350mm
Total Weight 1050KG
Fastest Movement Speed 60m/min
Fastest Working Speed 40m/min
Best Cutting Speed Range 1mm/s-180mm/s
Speed Control 0-100% Stepless Control
Laser Energy Control RD CCD Software Control/Manual Adjustment
Laser Tube Cooling Forced Water Cooling (Industrial Chiller)
Mechanical Resolution 0.025mm
Thickest Cutting Depth 30mm(Acrylic For Example)
Repeat Positioning Accuracy ±0.1mm
Power Supply AC220V±15% 50HZ
Main Unit Power ≤3000W
Support Software Format BMP PLT DST AI DXF DWG
Driving System Servo Motor, XY Axis Screw
Working Environment Temperature 0℃～45℃
Water Chiller CW5300
Machine Size 3600*2100*1250mm

Co2 Laser Cutting Machine Application:
It is used for precision cutting of non-metallic materials such as acrylic,
wood board, cardboard, plastic, rubber, leather, etc. It is typically used
for precision model cutting, precision tooling cutting, and edge patrol
cutting in the later stages of UV printing.
