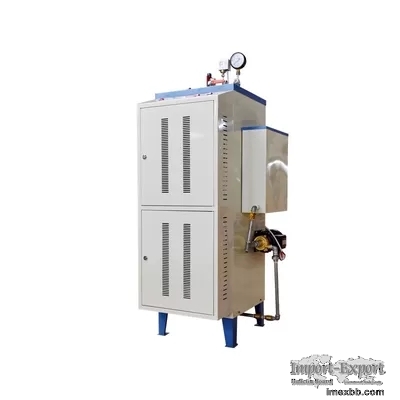

144KW Small Electric Steam Generator Multi Function 0.7Mpa Six Heaters

Product Description
ZQJ-200KG-144KW Multi Function Electric Steam Generator 0.7Mpa Six Heaters


Description of product :

1. Small in size, save more space

2. Heating automatic. easy to install, easy to operate, easy to maintain

3. The adjustable pressure controller can be adjusted by your need.

4. High quality heating tube, can adjust steam power
5. Inner tank is carbon steel materials, outer is stainless steel or carbon
steel.



Multiple security Protection:

1. The safety valve relief automatically when the pressure reached the
setting pressure.

2. Stop heating automatically when there is no water in the tank.

3. Stop heating automatically when there is no electricity.

4. Stop heating automatically when stainless steel mechanical adjustable
pressure controller reached the setting pressure.



Application Range:

An electric steam generator, also known as an electric steam boiler, is a
device that uses electricity to produce steam. It is commonly used in
various industrial settings where steam is required for heating,
sterilization, or power generation.

These devices are commonly used in industries such as food processing,
pharmaceuticals, textiles, chemical manufacturing, and power generation.
They are also utilized in steam cleaning applications and for steam baths in
wellness centers.

It's worth noting that the specific design and features of electric steam
generators can vary depending on the manufacturer and intended application.





Technical Parameter:



Steam temperature 175℃
Input power supply 3 phase 5 wires 380V
Alternating current
frequency:50Hz
Leakage switch 300A
Electric current 216A
Main power cord 95Square mm standard copper wire
Control Gear 6
Machine size 850*720*178mm
Water capacity 49L
Power of water pump 550W
Diameter of water intake DN15
Diameter of sewage outlet DN25
Diameter of steam outlet DN25
Diameter of safety valve DN20
