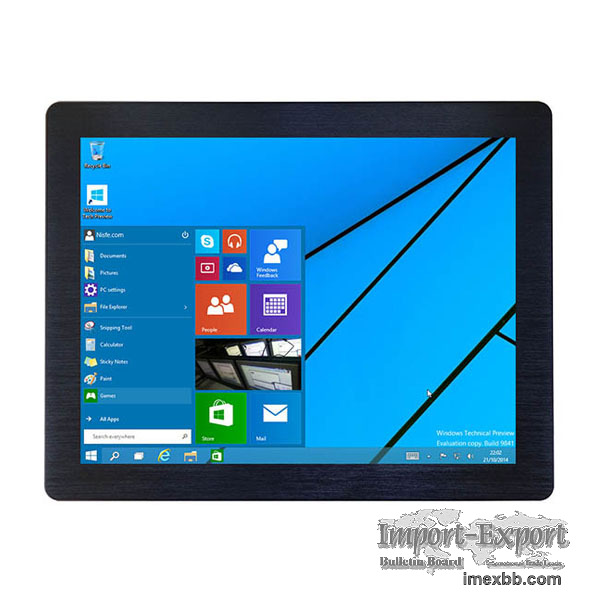

15 inch industrial Fanless panel pc with touchscreen

IPC-15PF is a 15" fanless industrial panel pc with touch screen, SSD/HDD and
RAM size is option, Optional to equipped 3/4/5/6 COM, 2 LAN 1 HDMI 4 USB.
OEM is accpted for industrial Automation equipments. Supports Microsoft ®
Windows 7, Microsoft ® Windows 10, Microsoft ®WES7P, Microsoft ® Windows 10
IOT LTSC, Linux.

Main System

CPU Onboard Intel Intel ® Celeron ® Processor J1900 processor
Chipset Intel Bay trail SOC
System Memory Preload 2GB Ram(Max 8G)
HDD (hard disk ) 2.5" SATA HDD/SSD; Preload 500GB HDD
LAN 2x Realtek ® RL8111x (Gigabit) 10/100/1000Ethernet
Graphic Intel HD chipset
Audio Realtek ® ALC662, 5.1 channel surround Audio
I/O Connector 2/3/4/5 x RS-232
1 x RS422/485
1 x HDMI
1x DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
3 x USB2.0, 1 x USB3.0
1x 3Pin DC power input terminal block
Expansion 1x Mini PCIe slot

General

Construction Aluminum front bezel and Aluminum chassis
OS Support Windows 10/8/7, Windows XP, Linux
Mounting Panel mount or Standard VESA 100mm
Power supply DC Input Voltage : 12v, with External AC adapter; Output Rating
28W
Optional Wide range DC 9-36V input

LCD display

Display type 15" XGA TFT LCD LED Backlight
Resolution 1024 x 768 pixels
Contrast Ratio 700:1
Luminance 450 cd/m2
Viewing angle 160 °(H) , 140 °(V)
Response Time 12 ms
LCD MBTF 50, 000hrs

Touchscreen

Type Resistive touch screen
Controller Interface Internal USB interface controller
Resolution Continuous
Light Transmission 81% or more
Operating Force ≤100g
Life Expectancy 35 Million

Environmental

Operate Temperature 0 ~ 50 °C (32 ~ 125 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Humidity 10% to 90%@ 40 °C , on-condensing
Vibration 17 to 500HZ 1G PTP
Operating Shock 1G /peak ( 11m sec)
Ingress Protection Front panel IP65/NEMA4

Packing info

Dimensions(WxHxD) 406 x 312 x 68mm
NET weight 7.5 KG

Minimum Order: 1 pieces
