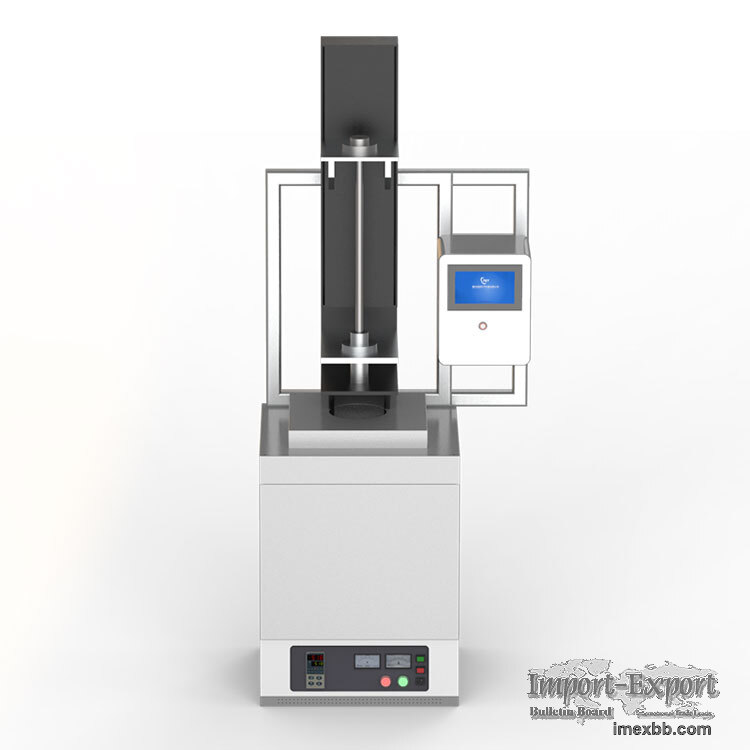

1600℃ single crystal furnace by top seed solution growth (TSSG)

1600℃ Top Seeded Solution Growth (TSSG) Furnace--Crystal growing furnace

CYKY-1600X-TSSG is a top seed solution growth (TSSG) furnace for growing various
single crystals via flux solution. The box furnace uses alumina fiber as the
furnace chamber material and MoSi2 as the heating element. Its chamber size is
φ330mm × 250mm (H), and the maximum temperature can reach 1700 ℃. 30-segment
programmable precision temperature controller, which can set heating and cooling
temperature program according to different customer needs, the temperature control
accuracy can reach ± 1 ℃, equipped with a precision pulling and rotation
mechanism can be used to grow various crystal materials via top seed crystal flux
solution, pulling speed and rotation speed can be customized according to customer
needs.

Technical parameters:
Furnace construction
● Furnace material, using alumina polycrystalline fiber
● The double-layer shell structure is adopted so that the temperature of the shell
surface is less than 60℃
● The heating element adopts high-quality silicon-molybdenum rod
● Internal heating zone size:
     Φ330mm × 250mm (H) (21 Liter)
     Effective heating area: φ200mm × 250mm (H) (8L)

Working Temperature
● Maximum working temperature: 1700 ℃ (＜ 1h)
● Continuous working temperature: 1600 ℃

Temperature Control
● Intelligent 30-segment programmable control, can set up 30-segment temperature
heating and cooling program
● Constant temperature accuracy: ± 1℃
● Heating rate: 0-10 ℃ / min (recommended ≤5 ℃)

Power  AC 220V, 50/60Hz; power: 9.5 KW
Furnace Dimension 610×635×825mm

Crystal Seed Rod Mechanism
● Water cooling pulling rod diameter: 28mm
● Customizable pulling speed range: 0.03-12mm / h (customers can customize
according to actual needs, please contact our sales for details)
●Max Travel Distance: 400mm
● Manual operation to achieve rapid lifting
● Optional: Rotation speed: 0.03-50r / min (customized rotation mechanism and
rotation speed range according to requirements)

Minimum Order: 1 sets
