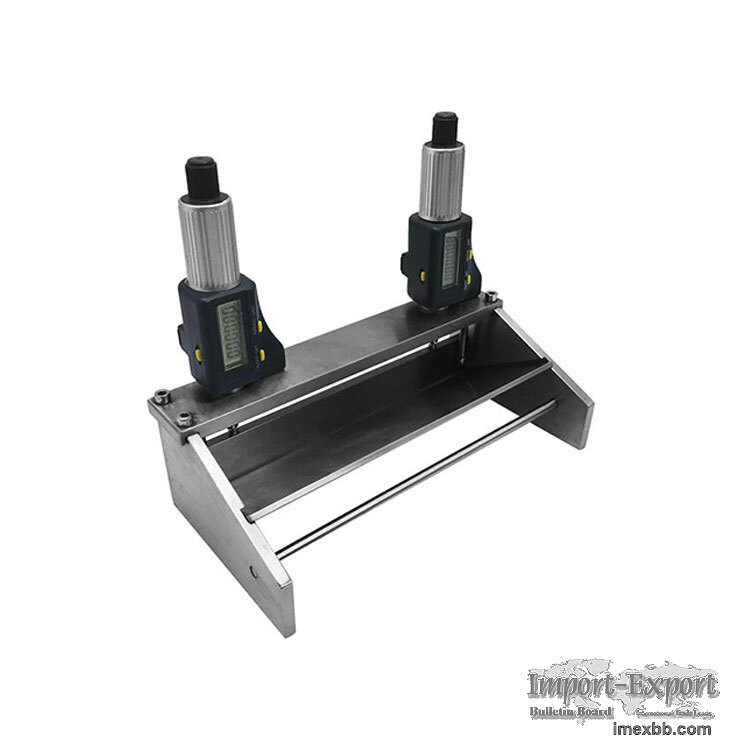

180mm width doctor blade film applicator with micrometer

Micron-level adjustable film applicator-width 180mm

Adjustable film applicator-This is a unique wet film forming tool that can adjust
the film thickness with a micrometer. The operator can adjust the gap between the
doctor blade and the coated surface through a micrometer. This tool is especially
suitable for laboratory production of battery electrodes, pre-ceramic tape and
various films.

Feature
1. The width is 180mm
2. A slurry guide plate is installed to make the film making easier
3. The gap between the doctor blade and the coated surface: 10-5000um
4. Micrometer adjustment head, the adjustment accuracy is 10um
5. Made of 304 stainless steel

Minimum Order: 1 sets
