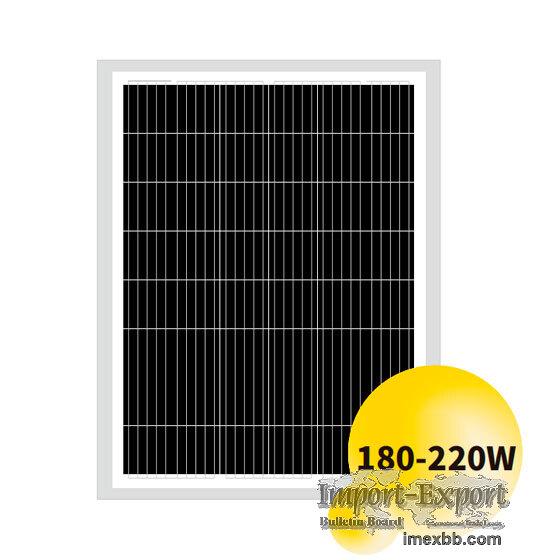

180W-220W Poly Solar Panel With 48 Pieces Solar Cells

The wattage of the solar panel composed of 48 polycrystalline cells is 180w,
185w, 190w, 195w, 200w, 210w, and 220w. It is most often used for military and
civilian life in remote areas without electricity, such as plateaus, islands,
pastoral areas, border posts, etc. electricity, as well as fiber optic cable
maintenance stations, broadcasting/communication/paging power systems, etc.,
are widely used, and are equipped with waterproof junction boxes to reduce the
possibility of short circuits and are not affected by environmental factors.
The goal of Solaborn solar panels is a quality follow-up, the manufacturer
directly provides high-quality services, and any problem you have will get a
satisfactory solution.

Parameter Of 180W-220W Poly Solar Panel With 48 Pieces Solar Cells
Electrical Characteristics Of 180W Poly Solar Panel With 48 Pieces Solar Cells

Module Type SLB48P6-180
Maximum Power (W) 180
Tolerance Wattage (W) 0~+5
Optimum Power Voltage (VMP) 24.19
Optimum Operating Current (IMP) 7.44
Open Circuit Voltage (VOC) 29.09
Short Circuit Current (ISC) 7.96
Module Efficiency (%) 13.3

Electrical Characteristics Of 185W Poly Solar Panel With 48 Pieces Solar Cells
Module Type SLB48P6-185
Maximum Power (W) 185
Tolerance Wattage (W) 0~+5
Optimum Power Voltage (VMP) 24.35
Optimum Operating Current (IMP) 7.6
Open Circuit Voltage (VOC) 28.98
Short Circuit Current (ISC) 8.17
Module Efficiency (%) 14.35

Electrical Characteristics Of 190W Poly Solar Panel With 48 Pieces Solar Cells
Module Type SLB48P6-190
Maximum Power (W) 190
Tolerance Wattage (W) 0~+5
Optimum Power Voltage (VMP) 24.41
Optimum Operating Current (IMP) 7.79
Open Circuit Voltage (VOC) 28.98
Short Circuit Current (ISC) 8.17
Module Efficiency (%) 14.35

Electrical Characteristics Of 195W Poly Solar Panel With 48 Pieces Solar Cells
Module Type SLB48P6-195
Maximum Power (W) 195
Tolerance Wattage (W) 0~+5
Optimum Power Voltage (VMP) 24.45
Optimum Operating Current (IMP) 7.96
Open Circuit Voltage (VOC) 29.1
Short Circuit Current (ISC) 8.65
Module Efficiency (%) 14.62

Electrical Characteristics Of 200W Poly Solar Panel With 48 Pieces Solar Cells
Module Type SLB48P6-200
Maximum Power (W) 200
Tolerance Wattage (W) 0~+5
Optimum Power Voltage (VMP) 24.56
Optimum Operating Current (IMP) 8.15
Open Circuit Voltage (VOC) 29.59
Short Circuit Current (ISC) 8.86
Module Efficiency (%) 12.73

Electrical Characteristics Of 210W Poly Solar Panel With 48 Pieces Solar Cells
Module Type SLB48P6-210
Maximum Power (W) 210
Tolerance Wattage (W) 0~+5
Optimum Power Voltage (VMP) 24.96
Optimum Operating Current (IMP) 8.41
Open Circuit Voltage (VOC) 29.71
Short Circuit Current (ISC) 9.14
Module Efficiency (%) 15.56

Electrical Characteristics Of 220W Poly Solar Panel With 48 Pieces Solar Cells
Module Type SLB48P6-220
Maximum Power (W) 220
Tolerance Wattage (W) 0~+5
Optimum Power Voltage (VMP) 25.11
Optimum Operating Current (IMP) 8.76
Open Circuit Voltage (VOC) 20.25
Short Circuit Current (ISC) 9.62
Module Efficiency (%) 13.91


As one of the most professional solar products manufacturers in china, we
provide 190w solar panels for sale, solar panel 185w, solar panel 175w, solar
energy solutions and etc. Want to know the 190w solar panel price, contact us.

Minimum Order: 1 sets
