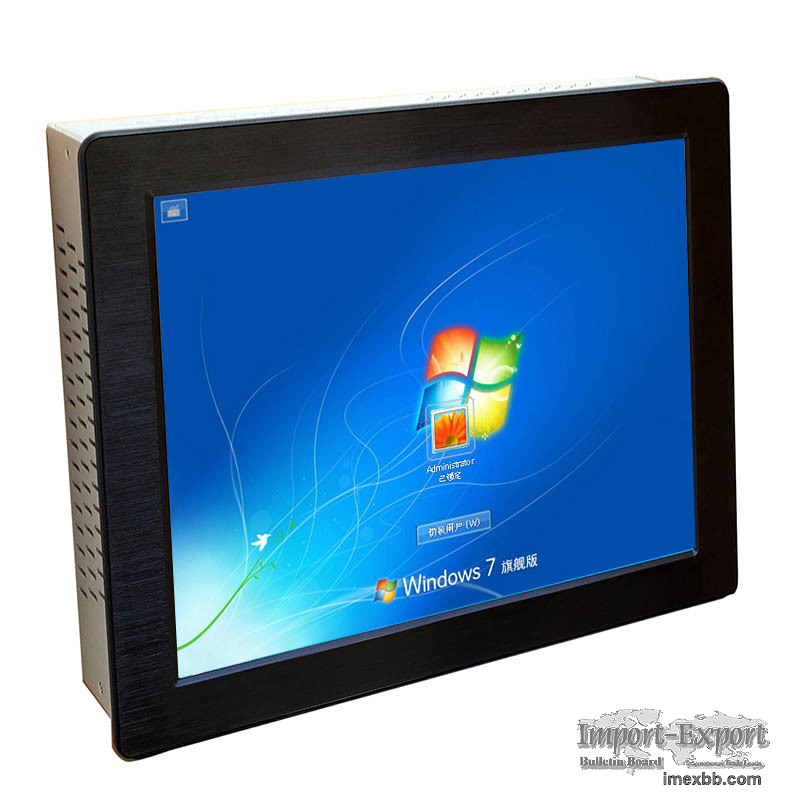

19 inch industrial panel pc

IDm-19 is a panel PC, industrial mount all-in-one with J1900 cpu, 1TB HDD or
SSD, 2/4/8 Gb Ram, touch screen, Parallel ports(1x LPT) , 2~6 com
RS232/RS485, touch screen or strengthen glass. supports Microsoft® Windows
7, Microsoft® Windows 10, Microsoft®WES7P, Microsoft® Windows 10 IOT LTSC,
Linux.

Features

19" SXGA TFT LCD Panel support 1280x1024 pixels
6mm Aluminum front bezel with resitive touch screen
Intel Celeron J1900 Quad Core 2.0G CPU
Supports Windows XP, Win7/Win8/Win10, Linux
6xCOM(5*S232,1*RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x Audio,
MIC
1* Mini PCIe slot for wifi optional
Standard DC 12V input (optional Wide range DC 8-30V input)
Panel ( Flush ) mount with clips
Standard VESA 75/100mm support stand , wall mount and swing arm
Specifications

System

Process , or Intel Celeron J1900
Chipset Intel Bay trail SOC
Memory DDR3 2G RAM (Max 8G)
Storage 500G HDD(SSD optional)
Graphic Intel HD chipset
Ethernet 2 x 100/1000 LAN ports
Video 1 x VGA
Audio 1x Mic-in and 1x Line-out
USB Port 4 x USB 2.0
Serial Port 6*COM(5* RS232,1*RS485)
Parallel ports(LPT) 1 x SPP/EPP/ECP port
Keyboard /Mouse 2xPS/2
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external
ac adapter
Construction Front aluminum bezel(6 mm) and steel chassis
LCD display

Display Type 19" SXGA TFT LCD(LED backlight)
Resolution 1280*1024
Max.color 16.2M
Luminance 300 cd/m2
View Angle 170°(H) , 160°(V)
Pixel Pitch 0.292 x 0.292 mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50, 000hrs
Available Options

Touch screen Resistive type touch screen
Wireless LAN Meet IEEE802.11b/g standard(WiFI)
DC Power Input Wide Range 9~36v DC input
Environmental

Operate temperature 32 °F~113 °F (0 °C to 45°C)
Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Power supply

Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
Output DC12V, output 40W

Packing info

Dimensions (WxHxD) 446 x 371x 79mm
Weight Net: 8.0kg , Gross:9.5 kg

Minimum Order: 2 pieces
