19 inch industrial panel pc 6 RS232 RS485 and LPT

IPC-19A is a 19" lcd industrial panel PC, industrial mount all-in-one with
J1900 cpu, 4G RAM(Optional 8G), 2.5" SSD/HDD (Size optional), 4 or 8 Gb Ram, a
high quality industrial panel pc with 6xCOM(5*RS232,1*RS485) , 1x Parallel
ports LPT(SPP/EPP/ECP port), 1280x 1024 lcd screen, resistive touch screen or
strengthen glass. 6mm thickness high rugged aluminum panel meet NAME4 /IP65
level. support windows 7/8/10 and linux. Its widely used for the operation,
programming, visualization, long-term archiving and simulation of processes in
all areas of automation and also with conventional industrial controls.

Features
19" SXGA TFT LCD Panel support 1280x1024 pixels
6mm Aluminum front bezel with resitive touch screen
Intel Celeron J1900 Quad Core 2.0G CPU
Supports Windows XP, Win7/Win8/Win10, Linux
6xCOM(5*RS232,1*RS422/RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x
Audio, MIC
1* Mini PCIe slot for wifi optional
Standard DC 12V input (optional Wide range DC 9-36V input)
Panel ( Flush ) mount with clips
Standard VESA 75/100mm support stand , wall mount and swing arm
Specifications
System
Processor Intel Celeron J1900
Chipset Intel Bay trail SOC
Memory DDR3 4G RAM (Max 8G)
Storage 2.5" HDD/ SSD ( Size optional)
Graphic Intel HD chipset
Ethernet 2 x 100/1000 LAN ports
Video 1 x VGA
Audio 1x Mic-in and 1x Line-out
USB Port 4 x USB 2.0
Serial Port 6*COM(5* RS232,1*RS422/RS485)
Parallel ports(LPT) 1 x SPP/EPP/ECP port
Keyboard /Mouse 2xPS/2
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac
adapter
Construction Front aluminum bezel(6 mm) and steel chassis
LCD display
Display Type 19" SXGA TFT LCD(LED backlight)
Resolution 1280*1024
Max.color 16.2M
Luminance 300 cd/m2
View Angle 170°(H) , 160°(V)
Pixel Pitch 0.292 x 0.292 mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50, 000hrs
Touchscreen
Type Resistive Touchscreen with internal USB interface controller
Resolution Continuous
Light Transmission 80% or more
Surface hardness 3H
Operating Force ≤100g
Life Expectancy 35 Millions
Environmental
Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% to 95% @40°C non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Power supply
Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
Output DC12V, output 40W
Packing info
Dimensions (WxHxD) 446 x 371x 79mm
Weight Net: 8.0kg , Gross:9.5 kg

Minimum Order: 2 pieces

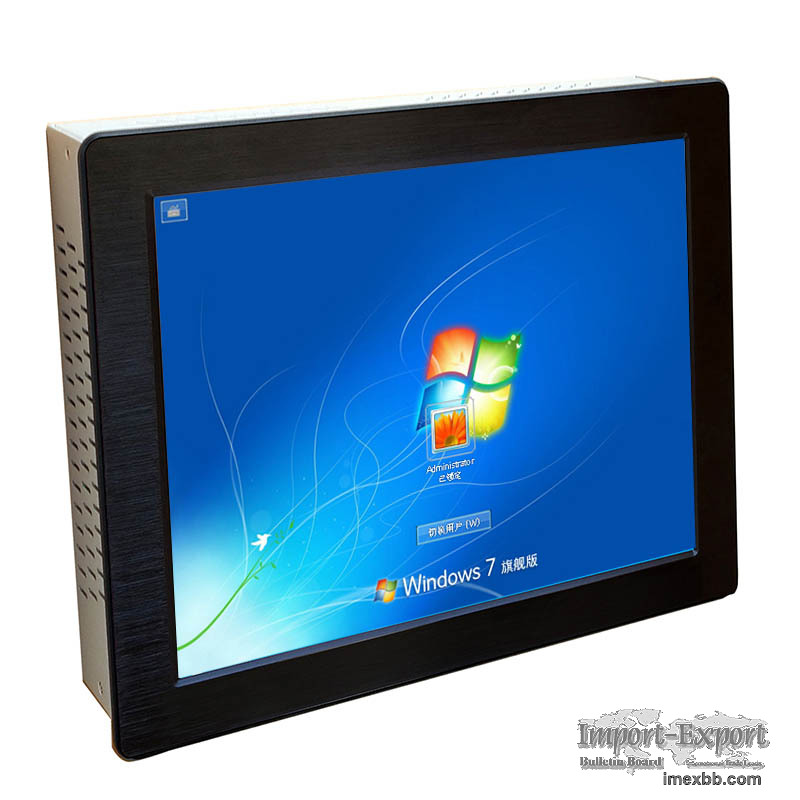

Click to Enlarge
