1920x1200P60 Resolution SDI To USB Live Streaming Video Capture Card For W

Product Description
SDI to USB3.0 video capture card





1920x1200P60 Resolution SDI To USB Live Streaming Video Capture Card For
Webcasting 0

Introduction
1920x1200P60 Resolution SDI To USB Live Streaming Video Capture Card For
Webcasting 1

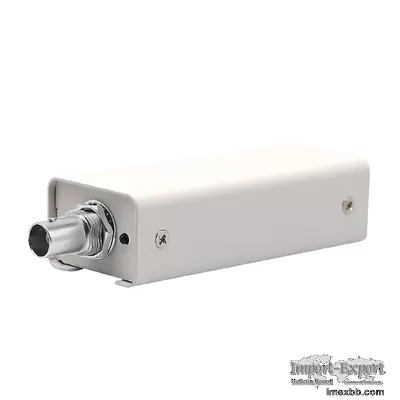

The UB570 External USB3.0 Capture is the simplest and most powerful solution
to get your SDI video and audio source into your computer. Free driver to
install and works with most software on PC allowing live video streaming,
webcasting or video conferencing to Skype, Facebook Live, Youtube Live,
Livestream, UStream, Dacast, Wowza Cloud and many more.The UB570 External
USB3.0 Capture can capture various HD video sources with resolutions up to
1920x1200p@60fps. The UB570 adopts the USB 3.0 interface, which can realize
high-speed transmission.

The UB5730 External USB3.0 Capture is the easiest and most affordable video
capture device on the market. Extremely small, you can carry to anywhere.Get
power from the PC directly and has no need of extra power adapter, which
enables it to be carried easily.



Model

UB570 SDI

Max.Input Resolution

1920x1200p@60/50fps

Recording Mode

Software Compression,Real-Time Mode

Interface

USB3.0(SuperSpeed)UVC ,

Video Input

1XHDMI

Video RAW Data Format

YUY2

Video Input Resolution

All resolution below 1920x1200p@60fps

Recording Video Format

YUY2(USB3.0)

UVC Video Output Resolution

1920x1200p@60/50/30/25/24fps
,
1920x1080p@60/50/30/25/24fps

1280x1024p , @60/50/30/25/24fps

1280x720p@60/50/30/25/24 , fps

1024x768p@60/50/30/25/24fps

800x , 600p@60/50/30/25/24fps

640x480p@60/50/30/25 , /24fps

Audio Input

SDI Embedded Audio

3.5mm Analog Stereo Audio

UAC Audio output Format

Stereo /16-bit /48000HZ

System Requirements

OS Support

Windows XP/Vista/Windows 7

Windows 8/Windows 8.1 Windows 10

Linux 2.6.14 or Higher

(32-bit and 64-bit)

Click to Enlarge
