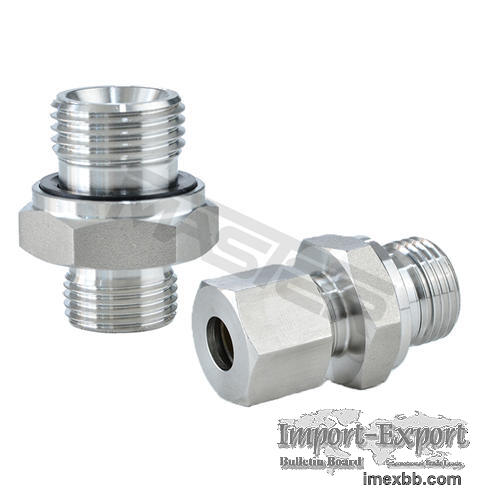

1CM/1DM Metric BSP Adapter

Product Description
The 1CM/1DM-RN metric to BSP adapter is a male fitting featuring a male 24-
degree cone metric thread on one end and a 60-degree cone BSP thread on the
other. These adapters are available in various sizes and materials to
accommodate different pipe dimensions and specific application requirements.
Product Parameter
NOTE PART NO. THREAD TUBE O.D DIMENSIONS
T1 T2 D1 L1 L2 L3 L4 S1
S2
L 1CM-12-10 M12X1.5 M10X1 6 23.5 8.5 8 23
14 14
1CM-14-12 M14X1.5 M12X1.5 8 29 10 10 25
17 17
1CM-14-18 M14X1.5 M18X1.5 8 30.5 11.5 12 26
24 17
1CM-16-14 M16X1.5 M14X1.5 10 30 11 11 26
19 19
1CM-16 M16X1.5 M16X1.5 10 31.5 12.5 12 24 22
19
1CM-16-18 M16X1.5 M18X1.5 10 31.5 12.5 12 27
24 19
1CM-16-22 M16X1.5 M22X1.5 10 35 14 14 29
27 19
1CM-18-14 M18X1.5 M14X1.5 12 30 11 11 26
19 22
1CM-18-16 M18X1.5 M16X1.5 12 31.5 12.5 12 27
22 22
1CM-18 M18X1.5 M18X1.5 12 31.5 12.5 12 27 24
22
1CM-18-22 M18X1.5 M22X1.5 12 35 14 14 29
27 22
1CM-22-16 M22X1.5 M16X1.5 15 32 13 12 28
24 27
1CM-22-18 M22X1.5 M18X1.5 15 32.5 13.5 12 29
24 27
1CM-22 M22X1.5 M22X1.5 15 36 15 14 30 27
27
1CM-26-18 M26X1.5 M18X1.5 18 33.5 14 12 30
27 32
1CM-26-22 M26X1.5 M22X1.5 18 36 14.5 14 31
27 32
1CM-30-22 M30X2 M22X1.5 22 38 16.5 14 33
32 36
1CM-30-26 M30X2 M26X1.5 22 40 16.5 16 33
32 36
1CM-30-27 M30X2 M27X2 22 42 18.5 16 35
32 36
1CM-36-33 M36X2 M33X2 28 43 17.5 18 34
41 41
1CM-45-42 M45X2 M42X2 35 48 17.5 20 39
50 50
1CM-52-48 M52X2 M48X2 42 52 19 22 42
55 60
Looking for a trusted BSP to metric adapter manufacturer with international
service experience and full production capabilities? Contact MASTER now to
request a catalog, samples, or custom quote. Our team will help you select or
design the right adapter for your system.
