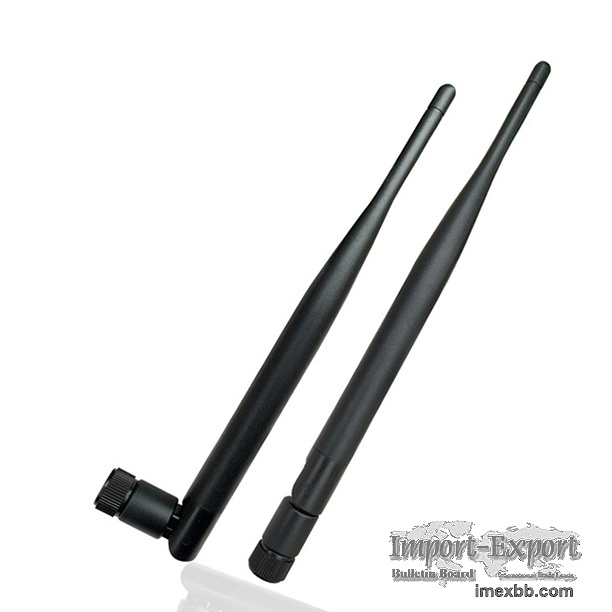

2.4GHz 5dBi Rubber Foldable Terminal Antenna (AC-Q24-L20D)

The dipole Antenna is primarily designed for use with WIFI modules.

It does not require a ground plane to connect to. It has a quality robust TPE
housing for use with wireless terminals.

The antenna has an SMA/RP SMA(M) connector.

It can be used straight or hinged 90 degrees. The antenna has a wide-band
response and can also be used for 2400-2483MHz applications.

Get Antenna Price 

Specifications of 2.4GHz 5 dbi helium antenna
Electrical
Frequency Range 2400-2500MHz
Band width 100MHz
Gain 5dBi
V.S.W.R ≤2.0
Radiation Omni-Direction
Polarization Vertical
Maximum Input Power 5W
Impedance 50Ώ
Connector SMA Male
Antenna Radome Material TPEE

Mechanical
Dimensions Φ13x197mm
Weight 22g
Operating Temperature -40℃ to+70℃
RoHS Compliant YES

Features of 2.4GHz 5 dbi antenna helium
01
It designed for superior performance and reliability, has an omnidirectional
radiation pattern and extremely high efficiency and gain on the 2.4 GHz band.

02
At just 197 mm in height and 13 mm in diameter, the robust TPEE enclosure can
be mounted straight or at a right angle to the device with its hinged RP-SMA
(M) connector.

03
Typical applications include: Smart Home, Gateways/Routers, and Connected
Agriculture.

For more information about external rf antenna, please feel free to contact us!
