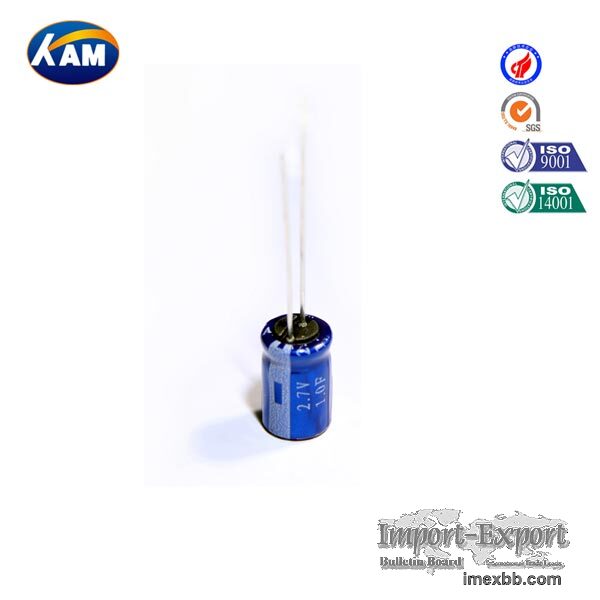

2.7V Winding Type Series

The performance of 2.7 volt Capacitor High energy, high power series

The capacity of 2.7V winding type series supercapacitor is from 0.1F to 3000F.
Thus, the applied fields of 2.7V supercapacitor applications are very
extensive.

SE/HE series Kamcap super capacitor products use a temperature range of -25 ℃
~ 70 ℃ low leakage, suitable for long-term continuous discharge of small
current.

SP/HP/LR seires kamcap super capacitor products use a temperature range of -40
℃ ~ 70 ℃ low internal resistance, providing instantaneous high current
output.

The typical application of 2.7V winding type series supercapacitor
Our 0.1F~super capacitor 2.7 v 3000f is widely applied into different
industries. For example, our 2.7V supercap can be used in RAM, detonator, car
recorder, smart meter and electric meter. This 2.7V super cap can also be used
for controller, vacuum switch, digital camera, motor drive, clock circuit,
backup power, toy, program-controlled switch, etc.

If you are interested in our products and want to buy super capacitor, please
contact our professional team through info@kamcap.com

The specification sheet of 2.7v winding ultracapacitor:

Series name HP Series High power type supercaps
Type name HP-2R7
Rated voltage VR 2.7V
Surge voltage 2.85V
Capacity range 0.1F~3000F
Operating temperature range -40 ~ +70℃
Product life Normal temperature cycle life：25℃, 1 million cycles between
VR and 1/2VR , Capacity attenuation≤30%, ESR change≤4 times.
High temperature endurance life：Maximum temperature retention VR，1000
hours.Capacity attenuation≤30%, ESR change≤4 times.

Series specification sheet：
Series name HE Series High energy type supercaps
Type name HE-2R7
Rated voltage
VR 2.7V
Surge voltage 2.85V
Capacity range 0.35F~25F
Operating temperature range -25 ~ +70℃
Product life Normal temperature cycle life：25℃, 1 million cycles between
VR and 1/2VR , Capacity attenuation≤30% , ESR change≤4 times.
High temperature endurance life：Maximum temperature retention VR，1000
hours. Capacity attenuation≤30%, ESR change≤4 times.

Supercapacitor product drawings：
HP Series: 0.1-120F
Product performance list:
HP 2.7V Series products:


HE 2.7V Series products:

Why choose Kamcap supercaps

As a leader in the industry, kamcap supercapacitor is constantly working on the
development of supercapacitors, with the strongest R&D team and the strongest
production capacity to provide customers with protection.

Supercapacitor is a new type of energy storage device with fast charge and
discharge and energy storage characteristics.All of kamcap super capacitor
products have passed the ROHS, REACH,ISO9001, ISO14001:2004,TS16949
Certification.

Typical Application


KAMCAP is one of the earliest supercapacitor manufacturers in China to develop
super capacitor, we provide supercap power module, supercap module, ultra
capacitor module, 12v ultracapacitor moduleultra, cap module, supercap 24v, 12v
super capacitor module, supercaps in series and etc. Want to know more? Please
contact us.

Minimum Order: 1000 pieces
