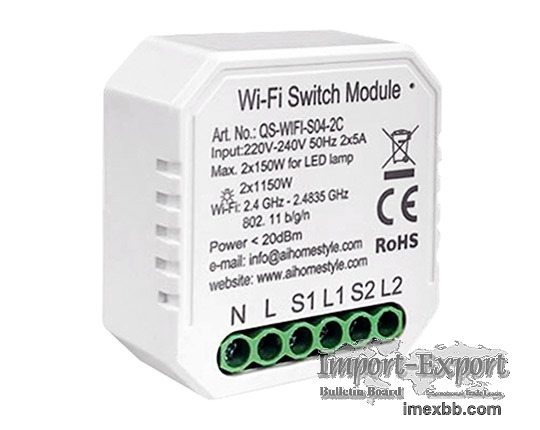

2 Gangs Wi-Fi Switch Module

This 2 gang wifi switch module works with Wi-Fi technology. It is a wireless
transmission technology. The standard is IEEE802.11 b/g/n. The frequency band
is generally 2.4GHz. At present, WIFI is widly used in smart home control. Such
as TVs, air conditioners, lamps, curtains, etc.

Different Types Of 2 Gang Wi Fi Switch Module
2 Gang Wireless Light Switch
2 Gang Wifi Switch
alexa light module
QS-WIFI-S04-2C
2 Channel micro switch wifi Module

Voltage 100-240VAC, 50-60Hz

Max. load: 2x5A, 2x1150W / 2x150W for LED lamp

Dims (WxDxH): 46x46x18mm(without clip)

With reset key

Parameters Of 2 Gangs Wi-Fi Switch Module
Operation frequency 2.4GHz - 2.4835GHz WIFI
WiFi WiFi 802.11 b/g/n
Operation temp. -10ºC - +40ºC
Case temp. Tc +80ºC (Max.)
Operation range ≤ 200 m
IP rating IP20
Certificates CE ROHS
Warranty 2 years


Features Of 2 Gangs wifi micro switch Module
Protocol: WIFI / Bluetooth / Zigbee / RF remote.
2 gangs to control more devices according to your needs.
Easy to install behind the existing switch, keep function of manual switches.
App control is synchronized with the manual switch.
Voice control compatible with Google home and Amazon Alex etc.
Schedule,group, scene, automation functions organizable with other smart home
devices,easily achieve home automation.
Accept customer customization for logo, color box. etc.
Quality Standard Of 2 Gangs Wi-Fi Switch Module
EMC Standard (EMC)
EN 300 328 V2.1.1 (2016-11),

EN 301489-1 V2.1.1 (2017-02),

EN 301489-17 V3.1.1 (2017-02),

EN 62311: 2008,

EN 61000-6-1:2007,

EN 61000-6-3:2007+A1:2011
Safety Standard (LVD)
IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006,

EN 60669-2-1: 2004+A1: 2009+ A2: 2010,

EN 60669-1:2018

RoHS Standard (RoHS)
2011/65/EU, (EU) 2015/863

Radio Equipment (RED)
ETSI EN 300 328 V2.1.1 (2016-11).

Minimum Order: 2000 pieces
