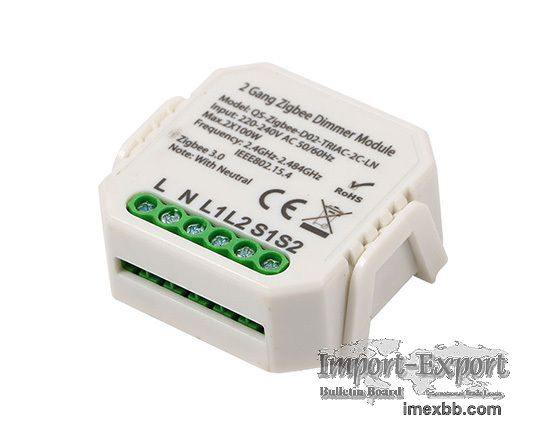

2 Gangs Zigbee Dimmer Module

This 2 gangs smart dimmer module is linked to mobile phone by Zigbee signals.
ZigBee technology is with high security which comes from its systematic design.
Its low-power technology and strong networking capability allows this 2 gang
zigbee dimmer module to be widely used in the field of smart homes.

Different Types Of 2 gang zigbee dimmer Module
smart dimmer zigbee
zigbee box dimmer
QS-Zigbee-D02-TRIAC-2C-LN
2CH WIFI Dimmer Module with Neutral

Voltage 100-240VAC

Max. load: 2x100W

Dims (WxDxH): 46x46x18mm

zigbee box dimmer
QS-Zigbee-D02-TRIAC-2C-L
2CH WIFI Dimmer Module without Neutral

Voltage 100-240VAC

Max. load: 2x100W

Dims (WxDxH): 46x46x18mm.

Parameters Of 2 Gangs Zigbee Dimmer Module
Protocol zigbee 3.0 dimmer
Dimming type Trailing Edge
Operation frequency 2.4-2.484GHz IEEE 802.15.4
Operation temp. -10ºC - +40ºC
Case temp. Tc +80ºC (Max.)
Operation range ≤ 200 m
IP rating IP20
Certificates CE ROHS
Warranty 2 years
Features Of 2 Gangs Zigbee Dimmer Module
Compatible with most Zigbee 3.0 gateway.
With/Without neutral wire.
2 gangs to control more devices according to your needs.
Easy to install behind the existing dimmer switch, keep function of manual
dimmer switches.
App control is synchronized with the manual dimmer switch.
Voice control compatible with Google home and Amazon Alex.
Mininum brightness is settable.
Schedule, group, scene, automation functions organizable with other smart home
devices, easily achieve home automation.
Quality Standard Of 2 Gangs Zigbee Dimmer Module
EMC Standard (EMC)
EN 61000-6-1:2007

EN 61000-6-3:2007+A1:2011

EN 301 489-1 V2.1.1

EN 301 489-17 V3.1.1

EN 300 328 V2.1.1

EN 62311:2008

Safety Standard (LVD)
IEC 60669-2-1:2002 / AMD1:2008 / AMD2:2015,

IEC 60669-1:1998 / AMD1:1999 / AMD2:2006,

EN 60669-2-1: 2004+A1: 2009+A2: 2010,

EN 60669-1:2018

Radio Equipment (RED)
ETSI EN 300 328 V2.1.1 (2016-11)

RoHS Standard (RoHS)
2011/65/EU, (EU) 2015/863.

Minimum Order: 2000 pieces
