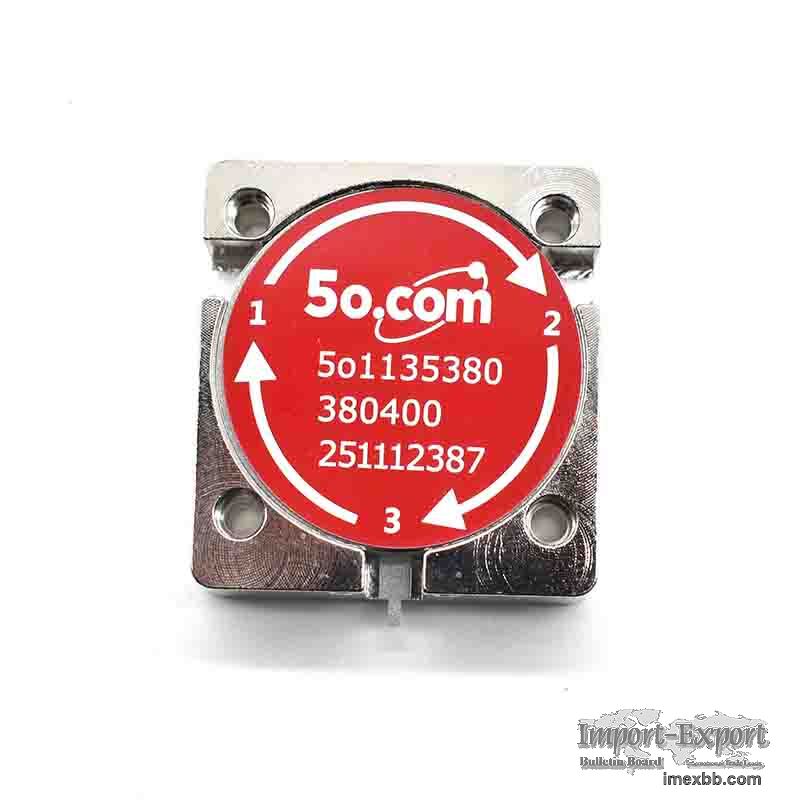

200 to 1875MHz RF Drop in Circulator

Model Number:5o1135380
Frequency Range:200~1875MHz
Insertion Loss:0.2dB
Isolation:30dB
VSWR:1.15
Forwa , rd Power:300W
Reverse Power:300W
Connector Type:TAB
Temperature:-40 ~ +85℃
Dimension:35*38*11mm
Application
RF power amplifier protection.
Digital,Satellite,Mobile Communication.
Medical,Communication,Security.
Military,Space and Commercial applications.

Engineered to operate cover 10MHz to 40GHz, up to 2000W power.
Built to the rigorous standards required for commercial implementations,
military and space.
Boasts a performance trio of low insertion loss, high isolation, and robust
power handling.
Custom design is available upon request.

5o.com is a modern high-tech enterprise specializing in passive RF and
microwave components, integrating R&D, production, and sales. The company
focuses on technological innovation as its core and relies on technology
leadership.
The company's main products: Microwave RF isolators, circulators, coaxial
terminations, coaxial attenuators, power splitters/dividers, waveguide to
coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers
and other microwave passive components.
Focusing on cutting-edge fields such as 5G communication, satellite navigation,
radar electronic countermeasures, and aerospace, we provide customers with
high-performance microwave passive device integrated solutions.
We fulfill our corporate mission of achieving customer success with high-
quality products, attentive service and outstanding social responsibility, and
are committed to becoming a global benchmark in RF microwave components.

Minimum Order: 1 pieces
