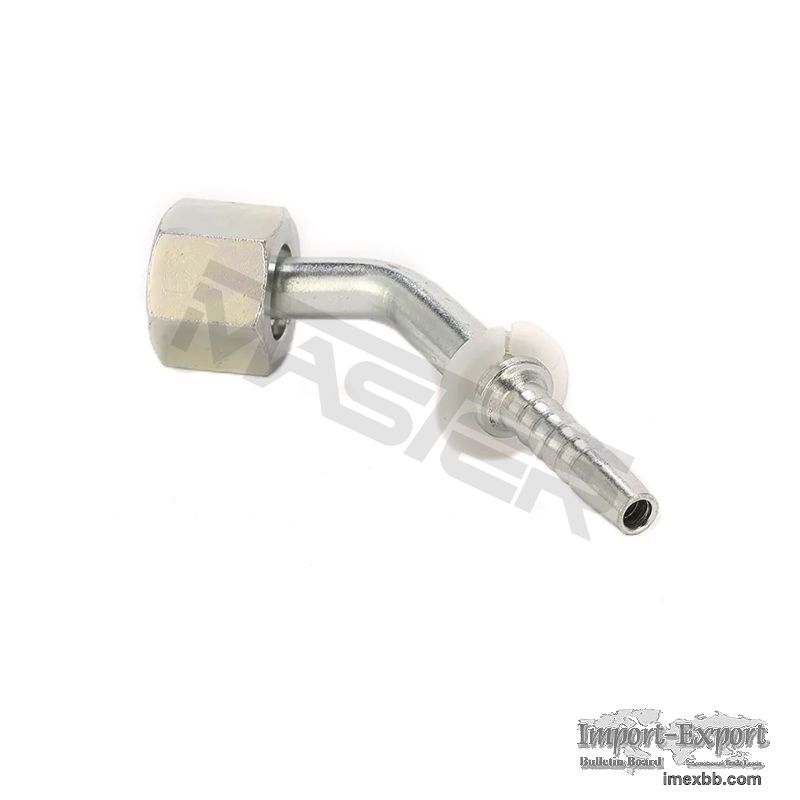

20141 Female 45° Multiseal Hose Fitting

Product Description
The 20141/20141-T 45-degree metric multiseal hose fitting is equipped with
multiple types of seals that offer a reliable barrier to prevent leaks. These
female multiseal fittings are designed to securely connect hydraulic hoses to
fluid systems using a socket that incorporates several sealing elements.
Product Parameter
PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C H S2
20141-10-03 M10*1 5 3 41.1 2.5 20.7 14
20141-10-04 M10*1 6 4 43.2 2.5 21.5 14
20141-12-03 M12*1.5 5 3 40.9 4 21.2 17
20141-12-04 M12*1.5 6 4 43 4 22 17
20141-14-04 M14*1.5 6 4 43.4 4.5 21.3 19
20141-14-05 M14*1.5 8 5 45.5 4.5 22.2 19
20141-16-04 M16*1.5 6 4 43.7 4.5 21.4 22
20141-16-05 M16*1.5 8 5 45.8 4.5 22.5 22
20141-16-06 M16*1.5 10 6 47.4 4.5 24.1 22
20141-18-05T M18*1.5 8 5 46.8 4 22.6 24
20141-18-06 M18*1.5 10 6 48.5 4 24.2 24
20141-18-08 M18*1.5 12 8 52.2 4 25.7 24
20141-20-06T M20*1.5 10 6 48.2 5.5 23.9 27
20141-20-08 M20*1.5 12 8 62.1 5.5 27.2 27
20141-22-06T M22*1.5 10 6 58.4 5 25.7 27
20141-22-08 M22*1.5 12 8 62.1 5 27.2 27
20141-24-08T M24*1.5 12 8 61.1 5.5 26.1 30
MASTER is a professional manufacturer and supplier of Multiseal Metric Fittings
in China. With over 30 years of experience in metric hydraulic fitting
production, we deliver high-quality metric fittings designed for reliable
sealing and easy installation in hydraulic systems worldwide.
