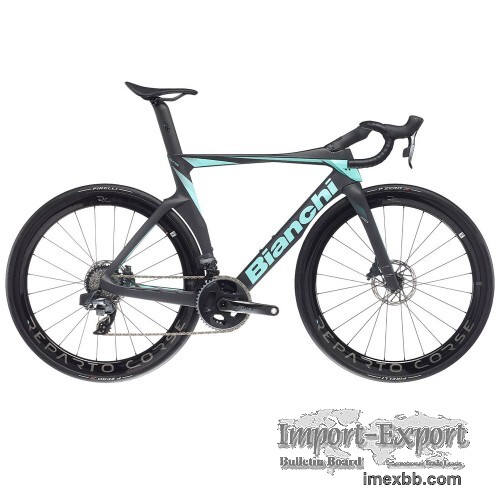

2023 BIANCHI OLTRE PRO SRAM FORCE ETAP AXS ROAD BIKE

Bianchi's Oltre Pro Force Disc Road Bike pairs an incredibly low drag frame
with aerodynamic components and an electronic groupset, making it a rapid,
responsive and enjoyable ride.

The carbon frame features dropped and flattened seatstays, a seat tube cut
out that wraps around the rear wheel and a concave downtube for the front
wheel to fit into, all in the pursuit of drag reduction. Air Deflector
fairings on the headtube marry up with the downtube’s sculpted shape and,
along with the large hole in the handlebar, create a low-pressure area
behind, reducing the effect of the wind on the bike and rider for better
aerodynamics. The combined effect of these developments means that Bianchi
claims the new frame saves 17.1 watts at 50kph and is 45 seconds faster
over 40km than the Oltre XR4, their previous aero bike.

Whilst the frame's design certainly concentrates on extracting every ounce
of speed from the rider, this isn’t at the expense of comfort, with
Bianchi’s Countervail carbon technology ensuring that long rides or poor
road surfaces don’t become uncomfortable.

50mm deep, tubeless-ready carbon wheels complement the fast frame perfectly
as they are from Bianchi’s in-house brand Reparto Corse, and offer a
suitably aerodynamic profile to the wind that is effective at a wide range
of yaw angles. Frame clearance allows the use of tyres up to 30mm wide.

SRAM’s fully wireless Force eTap AXS groupset operates in exactly the same
fashion as the range-topping RED version, so shifts are quick, accurate and
effortlessly actuated from the intuitive shifters. By using smaller
chainrings than normal and a cassette that has a 10t sprocket, the
drivetrain minimises gaps between ratios whilst still offering a wide range
of gears suitable for any parcours. The system can be connected to a GPS
head unit for extra data whilst riding or with SRAM’s AXS smartphone app
for post-ride analysis and customisation options.



HIGHLIGHTS

• Bianchi Oltre Pro carbon frame and fork with CV System and Air Deflector

• Bianchi Integrated Aero handlebar

• SRAM Force eTap AXS wireless 12-speed electronic groupset

• SRAM Force hydraulic disc brakes

• Tubeless-ready Reparto Corse Carbon 50mm wheelset



SPECIFICATION

FRAME Oltre PRO carbon w/Bianchi CV System aero shape, electronic
drivetrain only, headset 1.1/4"-1.1/4",BB-PressFit 86,5x41mm, integrated
seat clamp, for flat mount caliper, internal cable routing for disc brakes,
thru axle 12x142mm
FORK Full Carbon aero w/Bianchi CV System, Disc brakes, integrated head
1.1/4", flat mount caliper, thru axle 12x100mm
HEADSET Fsa No. 54 - MR137 - ACB 1-1/4" diam.46.9xdiam.37x7 Fsa TH970R -
MR082R - SL Alloy ACB 1-1/4" diam.46.8xdiam.34x7
SHIFTERS Sram Force eTap AXS D1 12sp Hydraulic Disc Brake
REAR DERAILLEUR Sram Force eTap AXS D1 gloss 12sp
FRONT DERAILLEUR Sram Force eTap AXS D1 glossy braze on
CRANKSET Sram Force D1 12sp double glossy, 46/33, Crank Length:
170mm-47/54cm, 172.5mm-55/59cm
BB Sram Press fit Road 86,5x41
CHAIN Sram Force D1 12sp
BRAKES included in the shifter
ROTOR Sram Rotor centerlock paceline x Road 160mm black rounded
REARHUB Aluminium alloy 7075, width: 100-142 mm, sealed cartridge bearings,
Brake interface: Center Lock
RIMS Reparto Corse Carbon 50mm profile, 700x21c, XDR body, 3K and UD
high strength carbon fiber, tubeless ready and clincher, nternal width: 21
mm, weight per set: 1.590g
TIRE Pirelli Pzero ™ Race SL TLR , 28-622, 120 tpi
STEM Integrated Aero handlebar, material Carbon, drop 125mm, reach 80mm,
Di2 compatible Ext: 90x400-47/50cm; 100x420-53cm; 110x420-55/57cm; 120x440-
59cm
HANDLEBAR included in the stem
GRIPS Velo Black soft Microfiber tapes+EVA-139 Shockproof 200*3cm
SEATPOST Oltre Full Carbon Aero special dimension seatpost, 20mm
offset, length: 280mm-47cm, 300mm-50/53cm, 350mm-55/59cm
SADDLE Bianchi RC139 carbon, weight 145g

Minimum Order: 1 pieces
