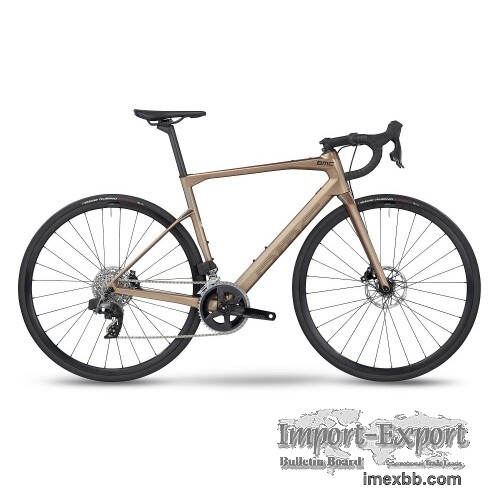

2023 BMC Roadmachine FOUR - www.calderacycle.com

2023 BMC ROADMACHINE FOUR SPECIFICATION
The Roadmachine’s frame and fork are constructed in our Premium Carbon with
all the benefits of the built-in TCC Endurance technology. Internal cable
routing gives a clean aesthetic to this road bike, whilst the Premium
Carbon D-Shape seatpost ensures next-level compliance in the saddle. SRAM’s
latest Rival eTap AXS 12-speed groupset offers a very wide gear range and
wireless shifting, and is fitted along with 25mm XRD-522 wheels, 28mm tires
and a conventional aluminium bar and stem.
FRAME Roadmachine Premium Carbon with Tuned Compliance Concept Endurance
Internal Cable Routing
PF86 Bottom Bracket
Flat Mount Disc
12x142mm Thru-Axle
FORK Roadmachine Premium Carbon with Tuned Compliance Concept Endurance
Internal Cable Routing
Flat Mount Disc
12x100mm Thru-Axle
GEARS 2x12
CHAINWHEEL SRAM RIVAL AXS 46-33T
CASSETTE SRAM RIVAL XG-1250 10-36T
CHAIN SRAM RIVAL 12 Speed
REAR DERAILLEUR SRAM RIVAL eTap AXS
SHIFTERS SRAM RIVAL eTap AXS HRD
BRAKES SRAM Rival eTap AXS HRD - Centerline X Rotors (160/160)
HANDLEBAR BMC RAB 02 - Ergo Top Shape - Compact Bend
STEM BMC RSM01
SEATPOST Roadmachine Premium Carbon D-Shaped Seatpost
15mm Offset
SADDLE Fizik Taiga
HUBS XRD-522
RIMS XRD-522 - Tubeless Ready - 25 mm
TIRES VITTORIA RUBINO - 28mm
TIRE CLEARANCE 33mm (Measured Width)
