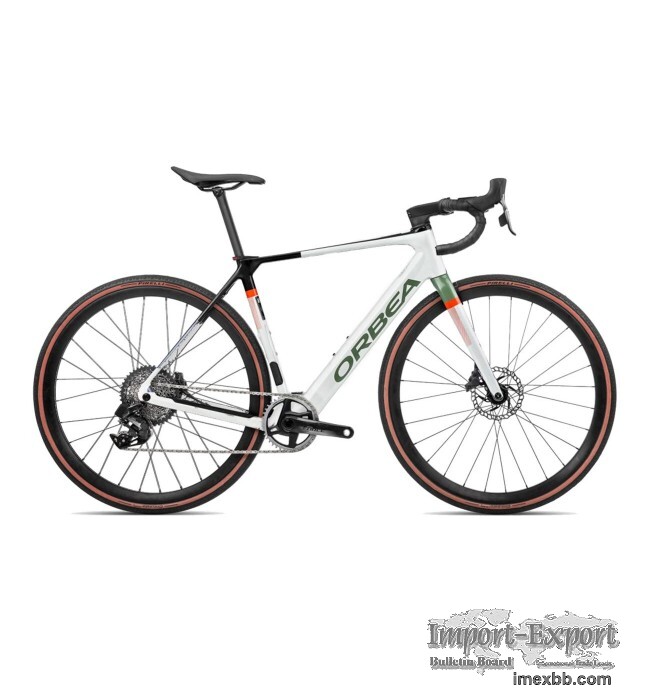

2023 Orbea Gain M21E 1X E-Road Bike

Rider and bike working in perfect synergy, you are breathing hard and your
heart is pumping but you are in control and having fun. Gain brings enough
power to turn gravity down a bit but not dominate the ride or remove the
satisfaction. The natural assistance blends invisibly into the background,
leaving you feeling like you are fitter than ever. This isn’t about riding
faster, it isn’t even about riding further, this is just about having more
fun each and every time you ride.

SPECIFICATION

FRAME Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp
with integrated STVZO rear light, ICR cable routing, Thru Axle 12mm x 142mm
rear, Flat Mount disc, 700x40 maximun tyre, BB386 EVO.

FORK Gain OMR carbon fork, 700x40 maximun tyre, flat mount disc mount,
12x100mm Thrue Axle, with down tube aero integration.

HEADSET FSA 1-1/2" Integrated Aluminium Cup

CRANKSET SRAM Force 1 DM Dub 40t

CASSETTE SRAM XG-1271 XPLR 10-44t 12-Speed

REAR DERAILLEUR SRAM Force XPLR eTAP AXS

CHAIN SRAM Force 12-Speed

HANDLEBAR OC Gravel GR30, Reach 80, Drop 125

STEM OC Road Performance RP10, -8º

SHIFTERS SRAM Force eTap AXS

BRAKES SRAM Force eTap AXS

WHEELS Alloy, Tubeless, 700c, 21c

TYRES Pirelli Cinturato™ Gravel H 700x35c TLR

FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Lite

REAR WHEEL AXLE Orbea Thru Axle 12x142mm M12x2 P1 Lite

SEATPOST OC Performance XP10 Carbon, 27.2mm, Setback 0

SADDLE Fizik Aliante R5

FRONT LIGHT Rear position light, on saddle clamp, COB Led, On/Off, 12
Lumen. STVZO

HANDLEBAR PLUGS Orbea Anti-Slippery/Shock Proof

MOTOR Mahle motor hub X20, ALC

BATTERY Mahle iX350 36V 353Wh

RANGE EXTENDER N/A

DISPLAY Mahle Pulsar One monochrome ANT+ LEV

CHARGER Mahle Active Charger up to 4A

REMOTE Mahle ONE Head Unit (BT/ANT+)

REMOTE2 Mahle Handlebar Dual eShifter

Minimum Order: 1 pieces
