20ft Prefab Storage Container Homes

Description
20ft Prefab Storage Container Homes
BOX SPACE 20 Foot40 Foot Prefabricated Container Homes, Prefab Sandwich
Panel House, Prefabricated Workshop Buildings

FLAT PACK CONTAINER HOUSE



Product Description:
BOX SPACE Flat Pack Container Is A Modular House With The Top And Bottom
Prefabricated In Factory, Which Will Help You Save A Lot Of Time And Labour
On Installation. At The Same Time, Its Efficient Internal Drainage System,
And Stronger Frame, Gives It Greater Safety And Durability.

It Features A Flat Roof, Insulation Sandwich Panel Walls, A Steel Door And
Two Windows,And It's Customizable In Size And Color. Installation Is Easy
And Fast, Making It The Perfect Choice For Worker Dormitory, Hotel, Site
Office, School, Personal Apartment, And Even For Rental Business.



Features:
Loading: 1*40HQ can load 6~8 units(Depends on wall thickness)
Prefabriciated top and bottom
Four hiden pipes for efficient drainage
"Sandwich" packing for easy distinguish
Strong wind and earthquake resistance


Structure:

20ft Prefab Storage Container Homes 0

20ft Prefab Storage Container Homes 1

20ft Prefab Storage Container Homes 2





Specifications:

Flat pack container specifications
Specification Length * width * height (mm) Exterior Size:5800L
×2400W× 2896H mm
Roof form Flat roof, drainage within the organization
The layer number ≤3layer
DATAS Life time 20years
Floor live load 2.0KN/㎡
Roof live load 1.0KN/㎡
Wind load 120KM/H
Anti earthquake standard Grade 8
Item Name Specification Qty Unit
Top frame system Top frame main beam 2.5mm thick, Q235B
galvanized steel, 110g/m2 galvanized 4 pc
Top frame secondary beam A C type steel, 80×40mm, 1.5mm; Q235B
galvanized steel, 110g/m2 galvanized 5 pc
Corner pieces shape 210x160x200mm, galvanized 110g/m2 4 pc
Skin board 0.45mm thinck 1 set
Ceilling panel V-831 moulded steel plate 0.326mm thick 6 pc
Colume system Column 210x160mm, Q235B galvanized steel, 110g/m2
galvanized 4 pc
Column stiffener L type, 2.5mm thick, 180×120×40mm shape 4
pc
Rain water pipe d=50mm, UPVC, L=2610mm 4 pc
Hexagon bolts M12×40 Hexagon bolts 48 set
Bottom system Bottom frame main beam 2.5mm thick, Q235B galvanized steel,
110g/m2 galvanized 4 pc
bottom frame secondary beam C section steel of 120*60mm, 1.5mm; Q235B
galvanized steel, 110g/m2 galvanized 9 pc
corner pieces 210*150*160mm, galvanized 110g/m2 4 pc
flume t=1mm; galvanized 4 pc
Cement board 18mm Cement fiber board 6 pc
PVC carpet 1.6mmPVC flooring 14 square meters
Column cover Column cover, 0.5mm color steel plate 4 pc
Eletrict system Distribution box including air opening, leakage
protection 1 set
Industrial outlet (including plug) 16A, including cable charge 1
set
Wires 220V wirings, 6㎡ input, 4㎡ for AC, 2.5㎡ for socket, 1.5㎡ for
lights 1 set
Light LED lights 4 set
Wall panel 0.326mm steel skins, 75mm rock wool sandwich panel, 80kg/m³
volume-weight 41 square meters
Door size: 840*2035mm
Steel door 1 set
Windows size: 800*1130mm
UPVC windows,4mm double glass 2 set










Installation

3 Workers+2 Hours = 1 Unit



20ft Prefab Storage Container Homes 3





Packing & Loading

"Sandwich" Packing:

All Walls, Columns, Windows, Door, And Other Accessories Are Packed In One
Unit.



Loading: 1*40HQ Can Load 6-8 Units (Depends On The Wall Thickness)

20ft Prefab Storage Container Homes 4

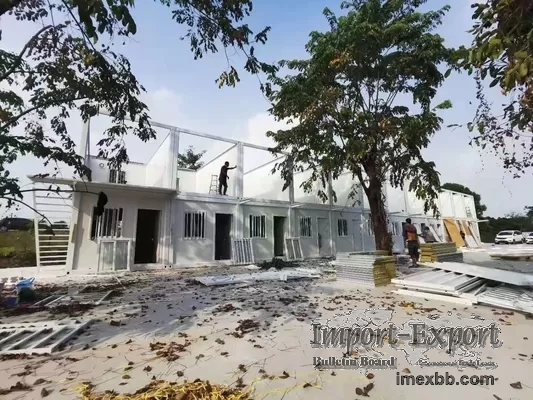

Project Cases



20ft Prefab Storage Container Homes 5

20ft Prefab Storage Container Homes 6

20ft Prefab Storage Container Homes 720ft Prefab Storage Container Homes 8



20ft Prefab Storage Container Homes 920ft Prefab Storage Container Homes 10



Support and Services:
BOX SPACE Will Offer A Range Of Technical Support And Service Options To
Ensure That Your Product Is Running At Its Peak Performance. Our Technical
Team Experts Are Available To Provide Advice And Assistance With Any
Technical Issues You May Experience. And Our Customer Service Team Is Also
Available To Answer Any Questions Or Concerns You May Have Regarding Your
Purchase.
