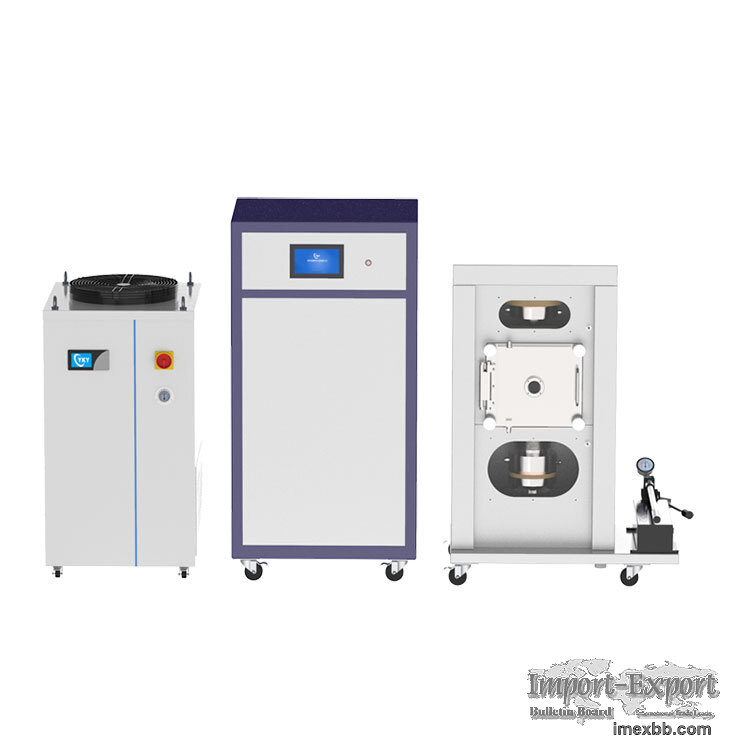

20T 1600℃ SPS spark plasma sintering furnace

Spark plasma sintering furnace (SPS) (20t, 1600 ℃)

Plasma spark sintering (spark) is a new technology for rapid consolidation of
powders. SPS uses a high current pulse power supply to stimulate and promote the
consolidation and reactive sintering process. Compared with the traditional
technology, SPS can adjust the density of all kinds of conductor, non conductor and
composite materials to any required value.
SPS shortens the experimental time and energy consumption to the greatest extent,
while maintaining the micro nano structure perfectly. Therefore, since its birth,
it has rapidly become an important tool in scientific research, new material
research and development, industrial production and other fields
The highest temperature of spark plasma sintering system can reach 1600 ℃. It can
be used for material annealing, material hot pressing bonding, surface treatment
and synthesis, etc. The samples can be metals, ceramics, nano materials and
amorphous materials. This device is especially suitable for the research of solid
electrolyte and thermoelectric materials

Specification
►Configuration ,
Stainless steel vacuum chamber
Hot pressing system
DC pulse power supply
Vacuum system
Hot pressing control system
►Power 20 KVA
►Input Voltage AC380V 50 Hz Three Phases
►Output Current DC 0~1500 A (Digital Controlled)
►Output Voltage DC 0~10 V (Digital Control)
►Pulse Frequency 5~255 ms Adjustable2~1000 Hz adjustable
►Maximum Tem 
1200ºC with K-type thermal couple
1600ºC with B-type thermal couple
Two types of thermal couple are included
►Temp controller 
Precision Eurotherm temperature controller is built in
At the fastest heating rate, the over-temp is less than 3℃
Temperature accuracy : < 0.1ºC
►Hydraulic Press 
Manual operated hydraulic press to apply pressure.
Max pressure: 20 T
Digital Pressure guage is built in with over-pressure alarm.
►Sintering Die Set Dimension
Equipped with hot isostatic graphite mould (made in Japan)
Diameter of die core: 12-50mm (customized according to customer requirements)
The maximum allowable pressure is 50MPa, and the maximum allowable pressure is
determined by the diameter of the mold core
The maximum pressure of the 1/2 inch die core is 0.5T
The maximum pressure of 1 inch die core is 3T
►Sintering Stroke 100 mm
►Vacuum Chamber 
Square stainless steel cavity body
Double-layer cavity, which needs to be supplied with cooling water
►Max Vacuum Level (Room Temp) 
10 Pa (7.5 x 10^-2 torr) with the mechanical pumpOne double stage mechanical
pump is included
1 Pa ( 10x10^-4 torr ) with optional turbo pump ( click picture below right to
order )
►Max Heating Rate 300ºC/min
►Water Cooling a circulating water cooling machine with a flow of 58L/min
►Standard Accessories
SPS Sintering Graphite Die Set
Graphite Spacer
K & B type Thermal Couples
rings
Clamping Tool
►Dimension
Power Supply :760 L X 460 W X 1820 H, mm
Furnace:970 L X 720 W X 1400 H, mm
►Compliance  CE certified
► Warranty: One year limited warranty

Minimum Order: 1 sets
