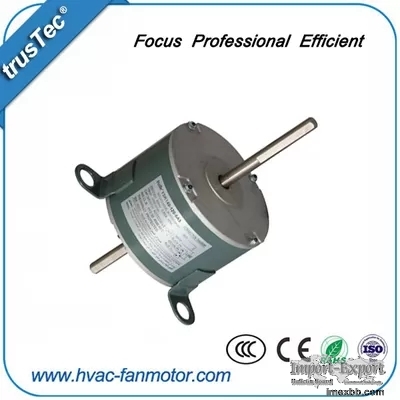

220V 1/5HP YDK/YSK139 Double Shaft Window Air Conditioner Unit Blower Fan M

Window ac unit air conditioner blower fan motor, universal air conditioner
fan motor


Technical parameters:
Model series YDK/YSK140
Voltage 110-120V / 220-240V 1PH
Frequency 50Hz / 60Hz / 50/60Hz
Power 1/8-1HP 100W-750W
Speed 600-1800RPM 4/6P
Speeds single/multi speeds
Rotation CW/CCW/Reversible
Insulation B/F
Proof IP20-IP54
Protection thermally protected
Enclosure totally enclosed/open ventilated


Model
Voltage
Frequency
Power
, Power
Speed
YSK140/30-4-150-1
230V
50H , z
150W

1/5HP
1200RPM/3 SPD
YSK140/35-4-185-1
230V
50Hz
185W
1/4HP
1300RPM/3 SPD
YSK140-245-4 208-230V 60Hz 245W 1/3HP 1625RPM/3 SPD
YSK140-375-4 208-230V 60Hz 375W 1/2HP 1625RPM/3 SPD
YSK140-550-6 208-230V 60Hz 550W 3/4HP 1075RPM
Listed are representative motors, technical parameter and mounting dimension
can be customized according to customer's requirement.



Product Features:
Use NSK low noise high quality ball bearing;
Nickel plating for shaft, electrophoretic coating for enclosure;
Reasonable structure, high efficiency, low temperature rise, low noise,
small vibration.
