24KV Vacuum Circuit Breaker

24KV Vacuum Circuit Breaker

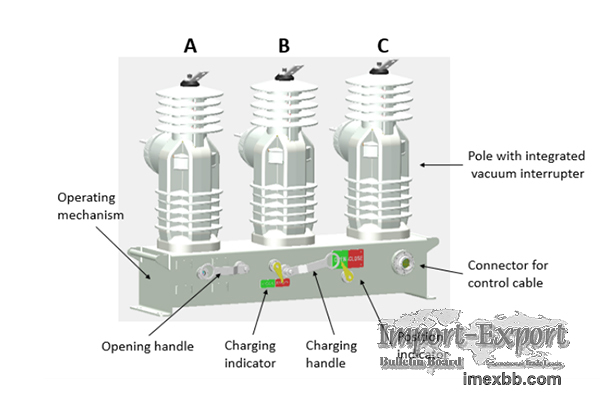

The 24KV breaker switch unit is comprised of three poles, the operating
mechanism, and the operating mechanism housing. The sequence of the poles is A
-B – C or 1 – 2 - 3 (sequence left to right when viewed from the lower
terminal side of the recloser switch unit.

Each 24kv vacuum circuit breaker by gopower is embedded in a solid-insulated
pole made of weather-proof cyclo aliphatic epoxy resin. This enables a small
design as well as resistance against environmental effects.

Breaker principle and design of 24KV Vacuum Circuit Breaker
ZW32 series 24KV circuit automatic recloser are used in distribution systems.
24kv vacuum circuit breakes are used to make and break normal and fault
currents. Breakers are fully equipped with sensors and a controller to provide
a means of protection and control.

In case of a line fault, breakers can break and make currents several times,
thus avoiding longer network interruptions due to temporary faults. The
manufacture, design, and testing of the vacuum recloser is based on current
standards IEC 62271-111：2019

Technical Parameters of 24KV Vacuum Circuit Breaker

Minimum Order: 1 pieces
