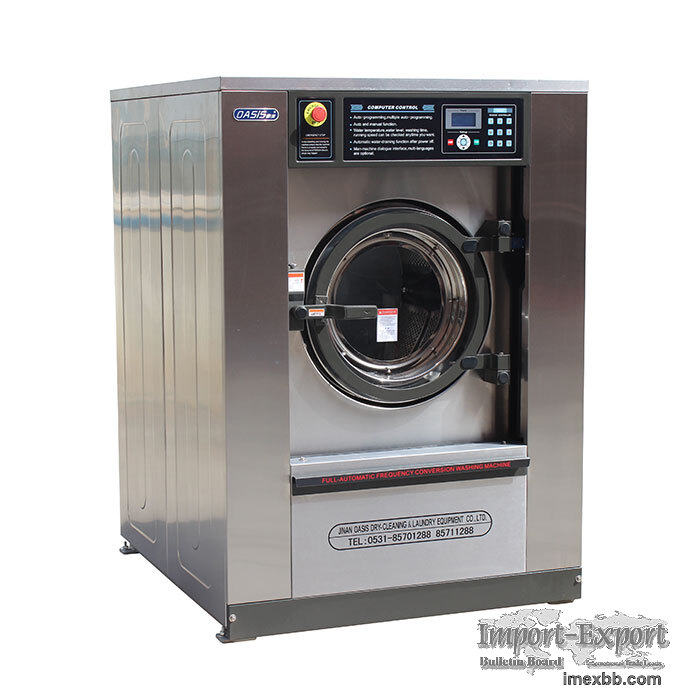

25kg Automatic Soft-mount Washer Extractor- SXT-250FD(Z)Q

Compact design for space saving

It adopts world latest MFS suspension technology and DFW patently electric
balance shockproof technology to create better stability and durability,
compared to the conventional washer extractors OASIS.

The internal and external drum and flanged shaft are all made by mould without
welding points, with qualified mirror finished SS304 stainless steel.

Strengthened aluminum alloy pulley with imported drive belt adopted to prolong
the use life and reduce the inertia load of the motor.
Both automatically control and manual control system.

The variable speed control system with vector multiple-speed linear.

High extraction speeds up to 860RPM.

PUNP brand programmable computer up to 32 wash programs

Programmable water levels, temperatures and cool-down

Steam heating OR electrical heating is optional

Safety door interlock system with large sight glass
Wide, rugged doors with viton seals

Stainless steel panels OR painting panels is optional.

Standard one cold water inlet. Hot water inlet is optional.
 OASIS reserves the right to modify the specifications without prior notice.

Technical Specifications
Model Unit SXT-250FD/ZQ
Basket Capacity KG 25
Drum Volume L 251
Drum Depth   mm 534
Drum Diameter mm 774
Speed of basket
Wash Speed rpm 45
Mxx.Spin speed rpm 860
G-force G 320
Pipeline
Cold water inlet inch 3/4
Hot water inlet inch 3/4
soap inlet inch
Water outlet inch ￠51
Steam inlet inch 1/2
Pressure
Steam Pressure mpa
Water Pressure mpa 0.15-0.4
Loading door
Diameter mm 539*539
Door center height mm 880
Power
Motor KW 2.2

Minimum Order: 1 sets
