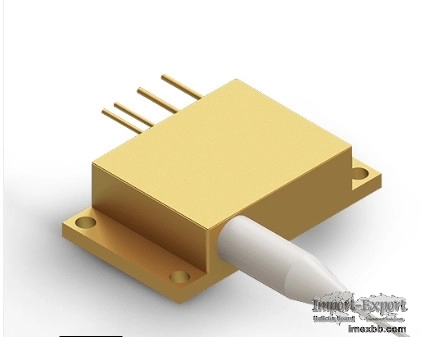

25w 808nm Bwt Fiber Laser Module For Solid State Laser Pump Source

Product Description
Features:

808nm wavelength

25W output power

400μm fiber core diameter

0.22 NA



Applications:

Solid-state laser pump source





Specifications(25℃) Symbol Unit K808DAHRN-25.00W
Minimum Typical Maximum
Parameter





CW-Output Power Po W 25 - -
Center Wavelength λc nm 808±3
Spectral width(FWHM) △​λ nm - 6 -
Wavelength Shift with Temperature △​λ/△T nm/℃ - 0.3
-
Threshold current Ith A - 1.8
Operating current Iop A - 9 11
Operating voltage Vop V - - 6
Slope Efficiency η W/A - 3 -
Electrical-to-Optical Efficiency PE % - 48 -
Fiber Data Core diameter Dcore µm - 400 -
Cladding Diameter Dclad µm - 440 -
Numerical Aperture N.A - - 0.22 -
Fiber length Lf m - 1.0 -
Fiber Loose Tubing Diameter mm - 3 -
Minimum Bending Radius - mm 176 - -
Fiber termination - - SMA905
Others ESD Vesd V - 500
Storage Temperature Tstg ℃ -20 - 70
Lead Soldering Temp Tls ℃ - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top ℃ 15 - 35
Relative Humidity RH % 15 - 75
