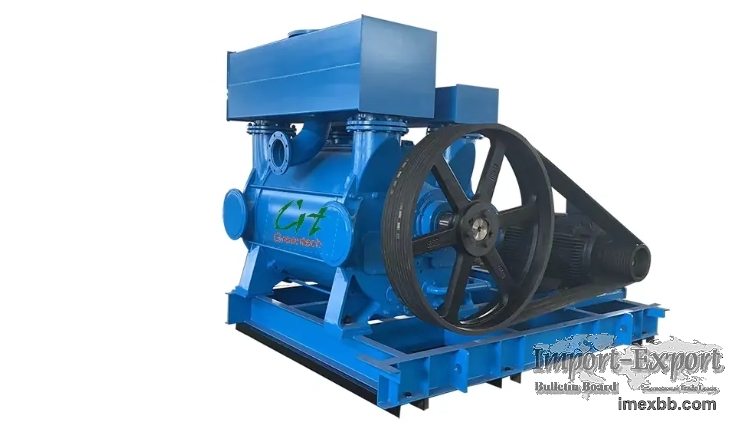

2be3 600 Liquid Ring Vacuum Pump Rotary Vane Vacuum Pump

The application range and characteristics:
2BE3 series water ring vacuum pumps and compressors are designed and
manufactured by our company integrating with the advanced technology abroad.
They are not only can save energy, but also can work constantly for a long
time.
Under the rough vacuum situation, the requirements for the liquid ring vacuum
pumps are very rigorous. So the 2BE3 series products are designed for pumping
various gases. They are widely used in many industries, such as, the paper,
mine, power station, chemical etc.

2BE3 series products can be driven with many different sets, such as, the V-
belt, synchronal motor, gear box etc. In order to save space, more than two or
at most four sets of the 2BE3 series pumps can be driven by one motor
simultaneously.
When set a middle wall in the casing, the pressure tolerance between the two
sides is lower than 80kPa and the two parts can work in different vacuum status
respectively. Thus one pump can work well like two. Hereby the product
operating flexibility is improved effectively.
The main characteristics of 2BE3 series products:

· The tolerance, corrosive status, and the begrime situation can be easily
observed by the big inspection port on both sides of the end-shield.
· The 2BE3 series pumps have flanges both on the top and sides with the same
diameter. It is more convenient to connect with the 2BE3 series pumps.
· The bearings are all used of the imported products in order to keep the
precise orientation and the high stability during the working of the pump.

· The material of the impeller is QT400 nodular iron or steel plates for
ensuring the stability of the pump under the various rigorous situations and
extending the life of the pump effectively.
· The casing is made of steel or stainless steel plates to extend the lifetime
of the 2BE3 series pumps.
· The shaft bushing is made of stainless steel plates to extend the life of
the pumps 5 times more than the normal material.

· The V-belt pulley (when the pump is driven by the belt) is used of the high
precise pulley with taper bushing to keep the reliability of the pump and
extend its life. And it is also easy to mantle and dismantle.
· The unique design of setting the separator above the pump saves the space
and decreases the noise efficiently.
· All the spare parts are cast by the resin sands that make the surface of the
pump very smooth. So it is not necessary to cover the surface of the pump with
putty and gives out the heat efficiently.
· The mechanical seals (optional) are all used the imported products so as to
avoid the leakage during the working of the pump for a long time.
Model NO.
2be3
Exhauster Method
Kinetic Vacuum Pump
Vacuum Degree
High Vacuum
Work Function
Pre-Suction Pump
Working Conditions
Wet
Color
Blue
Material
, Casting Iron or Ss
Connect
Belt or Direct Drive
Drive
Motor
Transport Package
Wooden Case
Specification
2BE3
Trademark
gree , ntech
Origin
China
HS Code
8414
Production Capacity
300sets/Month

Minimum Order: 1 sets
