2D Turnstile Barcode Scanner Module Wiegand QR Code Multiple Interface

2D Turnstile Barcode Scanner Module Wiegand QR Code Multiple Interface

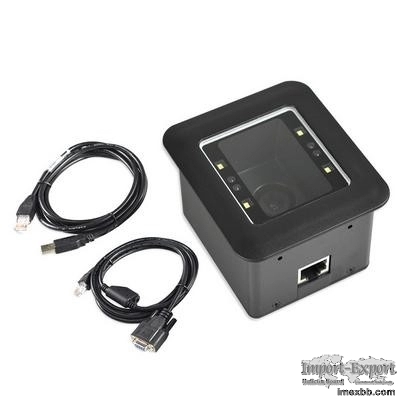

RD4500R barcode scanner description:

RD4500R 1d 2d QR fixed mount barcode scanner is designed primarily for such
applications as electronic tickets/coupons,

mobile marketing, mobile payment, kiosk, turnstile, and office automation, the
series fixed mount barcode scanner

is able to read barcodes on paper and mobile phones. RD4500R can support USB port,
play and plug easily, and

support RS232 port with 5V power adapter. We have many successful cases already in
the whole world. And we sell RD4500 series barcode scanner at leat 10Kpcs each
year. In China, Beijing Metro used our scanner also for phone screen payment and
fast pass.

Compatible OS: Android, Windows, Linux
Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.

RD4500R Phone screen reader main features:

1: Windows design almost same with phone size, so easy to scan phone screen
barcode,

2: Support multiple interface: USB or RS232, even can use USB or RS232 to Wiegand
converter to output wiegand, many application in turnstlie.

3: Easy to integrate and install: Don't need any SDK, can fast fix into the kiosk,
vending machine or turnstile for mobile payment

4: Suitable for dark environment: With 4 LED lights, so no matter day or night, can
fast scan the barcode.

5: Quality is very good: Almost no need to return for repair, and can use long
time.

6: Support sense mode, trigger mode and continuous mode: some engineer can command
control the scanner working or stopping.

RD4500R QR Datamatrix Scanner Parameters:

Interface RS232/ USB
Image Sensor 752 x 480CMOS
Symbologies
2D: PDF417, Data Matrix, QR Code

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey

Precision 10 mil
Light Source White LED
Scan Window 38.3mm*60.4mm
Depth of Field* 40mm-430mm
Print Contrast Signal ≥ 30%
Illumination 0 ~ 100,000 LUX
Power Consumption 1.75W (max)
Power Adaptor Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz
Weight 300g
Dimensions 82 mm(L) X 72mm (W) X 52mm(H)
Notification Beep
Certification FCC Part15 Class B, CE EMC Class B
