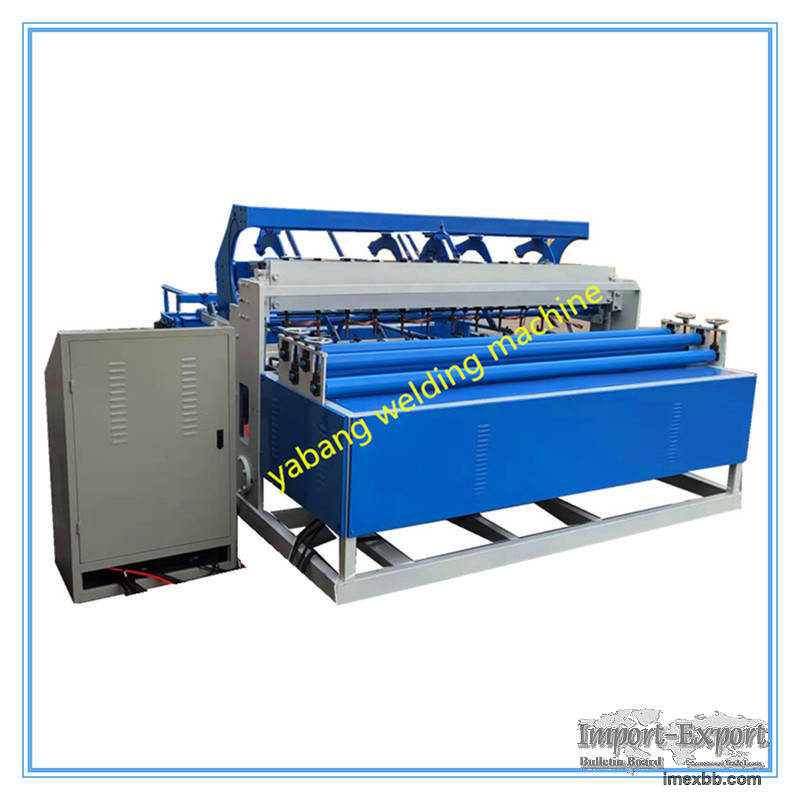

3-6mm Automatic Fence Mesh Welding Machine

Product Description
The 3-6mm Automatic Fence Mesh Welding Machine is a special equipment for
welding metal mesh, which is widely used in construction, mining, animal
husbandry, manufacturing and other fields.
Main parameters:
Type YB-1500B YB-2500B YB-3000B
Numble of Eelectrodes 31 48 61
Max.Mesh Width 1500mm 3000mm 3300mm
Wire Diameter 3-6mm 3-6mm 3-6mm
Mesh Length 3-12m 3-12m 3-12m
Cross Wire Space 100-300mm 100-300mm 100-300mm
Line Wire Space 100-300mm 100-300mm 100-300mm
Electric Capacity 125KVA*4 125KVA*6 125KVA*10
Welding Speed 40-65t/min 40-65t/min 40-65t/min
Control System PLC control PLC control PLC control
 Function features and advantages:

1.This Wire Mesh Welding Machine cent-control and welding time are
composed of PLC program system . The input front-panel has two forms, touch
screen and keyboard that makes the machine more intelligent and reasonable and
it could press at one time, separate welding. Surely,if the power supply is
enough big,it can also adopt the welding at the same time.
2.Line wires adopt per-cut wires,line wires are put by hand based on the
positioning device,then automatic tightening and send the down electrodes by
sending line wires car installed with the step motor; When the mesh is being
welded, line wires of the next mesh can be placed, which greatly shortens the
working interval time of the machine.
3. Cross wires also adopt pre-cut wires,the cross wire hopper obtains wires by
motor driver devices, electric magnetic increase feeding device auto-feeding
the wefts into the preparation area of the device from the
large storing hopper(storage up to 1000kg),it is installed in the removable
pulling mesh rack,very convenient to adjust and maintain.
For more details please visit www.ybmeshmachine.com
