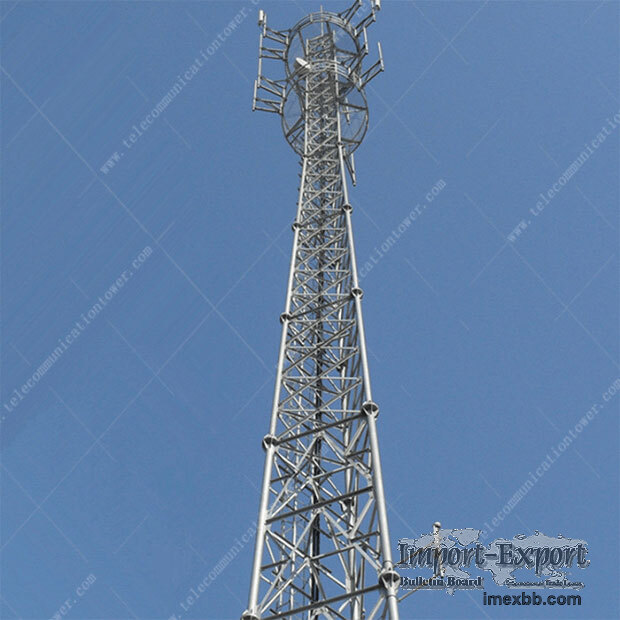

3 Legged Tubular Lattice Steel Telecommunication Tower

What is 3 Legged Tubular Steel Tower?

3 Legged Tubular Steel Tower is a self-supporting high-rise steel structure
made of steel pipe with a tower section and a triangular cross section.
Main features: 3 Legged Tubular Steel Tower is made of steel pipe, and the
tower body has a triangular cross section. A high-rise steel structure of angle
steel.
Applicable height: 40m, 45m, 50m.

Tubular Steel Communication Tower includes tower base towers, crossbars,
diagonal bars, antenna supports, lightning rods, and tower splicing devices.

Tubular Steel Tower Features:
1. The seamless steel pipe is used as the column material, the wind load
coefficient is small, and the wind resistance is strong.
2. The Steel Telecommunication tower column is connected by an outer flange,
and the bolt is pulled, which is not easy to damage and reduces maintenance
costs.
3. The 3 Legged Tubular Steel Tower is arranged in a triangular shape to save
steel.
4. The roots are small, the floor space is small, the land resources are saved,
and the site selection is convenient.
5. The tower body is light in weight, and the new three-leaf cutting board
foundation reduces the basic cost.
6. Truss structure design, convenient transportation and installation, and
short construction period.
7. The tower type is designed with the wind load curve changing, and the lines
are smooth. It is not easy to collapse in case of rare wind disasters, reducing
human and livestock casualties.
8. The design conforms to the national steel structure design specification and
tower design rules, and the structure is safe and reliable.

Highlights of JIAYAO self-sup , porting tower
● Leading design concept.
● Versatility, modular design, flexible configuration of accessories.
● Tower group design, modification and adjustment.
● The tower section is universal, and the same tower section taken from the
same mother tower is completely common in different tower types.
● Lower costs.
● Self-supporting tower light weight.
● Self-supporting tower installation cost is good.
● Self-supporting tower installation time is short.
● High reliability.
● The design and processing of JIAYAO's self-supporting tower products are in
line with ISO 9001:2000 quality management system.
● 50 years design life.
