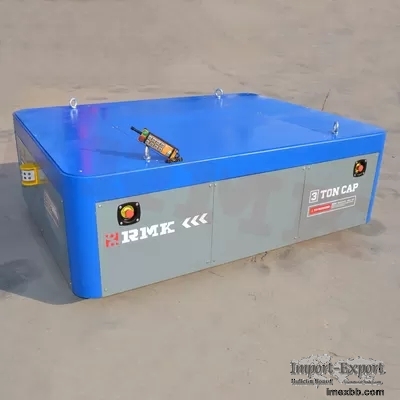

3 Ton Steel Pipe Transfer Cart Hydraulic Battery Operated Transfer Trolley

Product Description
Heavy Duty Battery 3 Tons Hydraulic Lift Steel Pipe Transfer Cart

Heavy Duty Battery 3 Tons Hydraulic Lift Steel Pipe Transfer Cart Is One
Kind Of Transfer Equipment For Steel Plate,Rebar,Steel Slab, Steel Coil,
Mold, Pipe And Other Materials Handling Between Workshops That It Can Move
Freely From Bay To Bay On The Cement Floor, From Production Line To
Warehouse.We Can Design Hydraulic Lifting Device,Scissor Lifting Device, V
Shape Supporting,Manual Hydraulic Outrigger,Add Rubber Pad On The Car's
Table According To Client's Transportation Requirements.

Customized Technical Specifications About Mold Transfer Trolley:
1. Load Capacity:3Tons
2. Table Size: 2000*1500*700mm
3. Power Supply Mode: Maintenance Free Lead-Acid Battery
4. Speed: 0-20m/Min
5. Operate Mode: Hand Pendant + Remote Control
6. Safety Device: Alarm Light, Emergency Stop Button, Laser Scanner
7. Other Functions: Hydraulic Lifting Of 150mm Height
8. Painting Color: Blue+Gray (Customized)

Technical parameters for Battery powered electric transfer carts
Model RWP-2t RWP-5t RWP-10t RWP-20t RWP-25t RWP-30t RWP-40t RWP-50t RWP-
150t
Rated Load(T) 2 5 10 20 25 30 40 50
150
Table Size(mm) Length 2000 3500 3600 4000 4500 4500 5000
5500 10000
Width 1500 2000 2000 2200 2200 2200 2500 2500 3000
Height 450 500 500 550 600 600 650 650 1200
Running Speed(m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20
0-20 0-18
Battery Capacity (Ah) 180 180 180 180 250 250 300
330 600
Battery Voltage(V) 24 36 48 48 48 48 48
48 72
1.Load capacity, table size and rail gauge can be customized;
2.Options: Remote radio control (imported or made in china);
3.Automatic stop when detecting obstacle or person ,limit switches (to limit
travel);
4.Battery type (Free of maintenance Battery, Lithium battery, Explosion-
proof battery, and Anti-high temperature battery);

hydraulic lift transfer cart for transformer handling
heavy load transfer cart for industrial material handling
