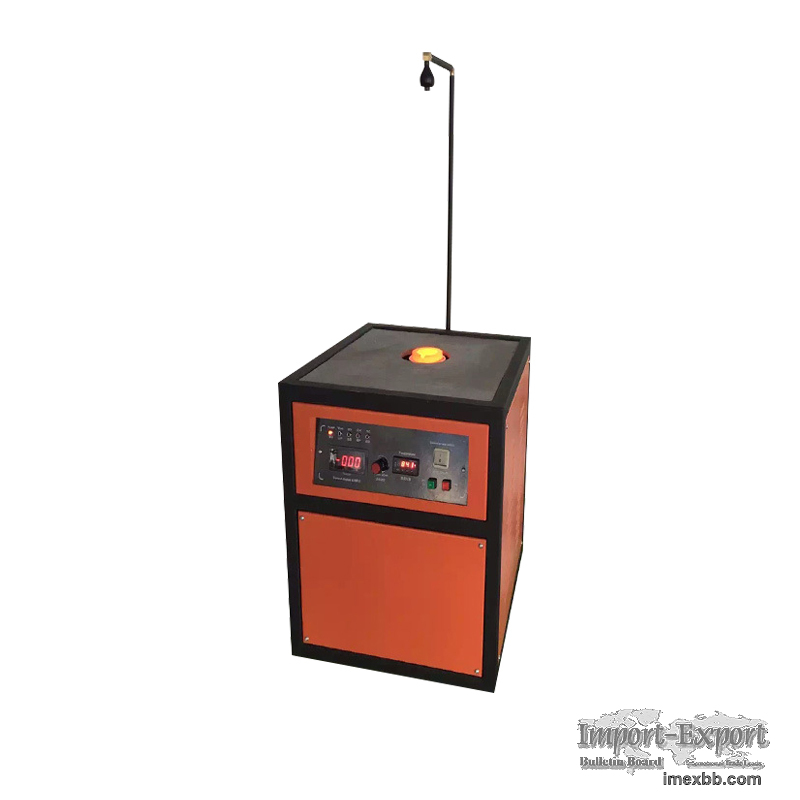

30KHZ-100KHZ high frequency induction melting machine for gold upto 8kg

Key word:
Gold melting machine
High Frequency gold melting machine
Small gold melting machine
8KG Gold melting machine

It is mainly through the crucible container to instantaneously induct and heat the
precious metal, and then perform smelting, purification, casting and other
processes.
1. For precious metals: platinum, palladium, gold, silver, copper, steel, gold
powder, sand, and other high melting point metals.
2. The amount of single melting metal is 1-8KG, and the single melting time is 3-5
minutes.
3. The highest furnace temperature can reach 1200-1500℃.
4: Widely used in homes, exhibition halls and laboratories.

Technical parameters:
Model: DD-25
Maximum oscillation power: 25KVA
Input voltage range: Three-phase 380V
Input voltage frequency: 50HZ-60HZ
Output oscillation frequency: 30KHZ-100KHZ
Maximum input current: 23A
Heating, heat preservation\cooling time: 1S-99S
Temporary load rate: 90%
Cooling water flow: Greater than 6L/MIN
Cooling water temperature: Less than 45℃
Weight: Host: 29.5Kg

Minimum Order: 1 sets
