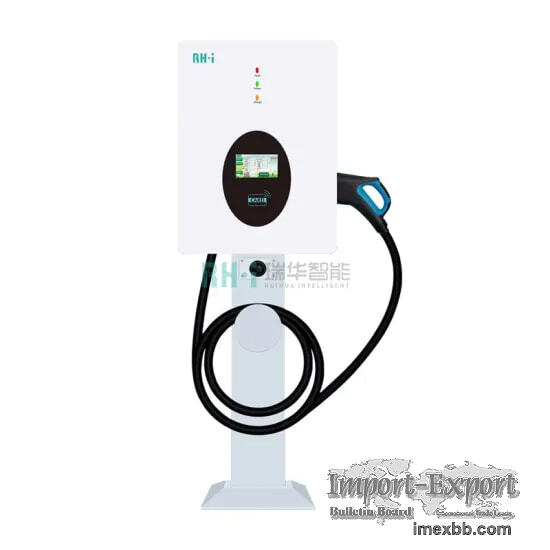

30kw DC EV Charger, Charging Station

The 30kW DC EV Charger is a versatile, high-performance solution for electric
vehicle charging. Delivering 100A output current, it ensures rapid charging to
minimize downtime. This charger supports wall-mounted or floor-standing
installation, making it suitable for various environments like homes,
commercial spaces, and parking lots.
Whether for home or business, this 30kW DC EV Charger delivers a reliable and
efficient charging experience, catering to the needs of modern EV owners.

30kw DC EV Charger Parameters:
Parameter Model RHDC30K-L-EU RHDC40K-L-EU
Input Power Supply 3P+N+PE
Input Voltage 380V/AC±15%
Input Frequency 50/60 Hz
Input PF ≥0.98
Total Harmonics of Input Current ≤5%（50%～100% loading）
Output Rated Power 30kW 40kW
Rated Current 30A 40A
Rated Voltage 1000V/DC
Voltage Range 150-1000V/DC
Constant Power Output Voltage Range 300-1000V/DC
Maximum Current 100A 133A
Current Range 5-100A 5-133A
Maximum Efficiency ≥95%（100% loading）
Steady Current Accuracy ≤±1%
Steady Voltage Accuracy ≤±0.5%
User Interface LED Indicator LED（Green 、 Yellow、  Red）
LCD Display 7″or 10.1″Touch LCD Screen
Start Mode POS,RFID Reader,Plug&Play,APP
Cable Length 5m
Number of Gun Single
Communication LAN Yes
4G Yes
Protocol OCPP OCPP1.6J
Certification Standard IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-
24:2014，EN 61851-21-1:2018
Safety Short Circuit Protection Yes
Over Load Protection Yes
Over Temperature Protection Yes
Leakage Protection Yes
Over and Under Input Voltage Protection Yes
Over and Under Output Voltage Protection Yes
Over-current Protection Yes
Environment Work Temperature -20℃～+55℃
Storage Temperature -40℃～+85℃
Relative Humidity ≤95% Dew Free
Work Altitude ≤2000m
Environmental Conditions Indoor or Outdoor
Others Cooling Method Fan Cooling
Noise ≤65dB
Ingress Protection IP54
Installation Wall-mount or Floor-stand
Product Dimension 780*580*205.5 mm (H*W*D)
Net Weight 67KG
External Package Wooden case

Ruihua invest alot to import Large-scale Automatic Production Line,Pneumatic
Punching, HRT High-speed Hydraulic Turret-Type Punch Press, Automatic Welding
Robot and German Trumpf Large Fiber Laser Cutting Machine,which Both the copper
plate and aluminum plate are available for cutting.
We also present 2pcs cards for start mode, to guard against burglary.
Emergency Stop Button – When emergencies occur, You can quickly press this
button for protection.
Metal plate housing design- more durable,Impact resistance, not easy to age
